Brand
EP
Model
CPD15TVL
Condition
Clearance
Capacity
1.5 Ton
Serial Number
2331700168
Mast
4.8m 3-Stage Container Mast
Tyres
Non-Marking Tyres

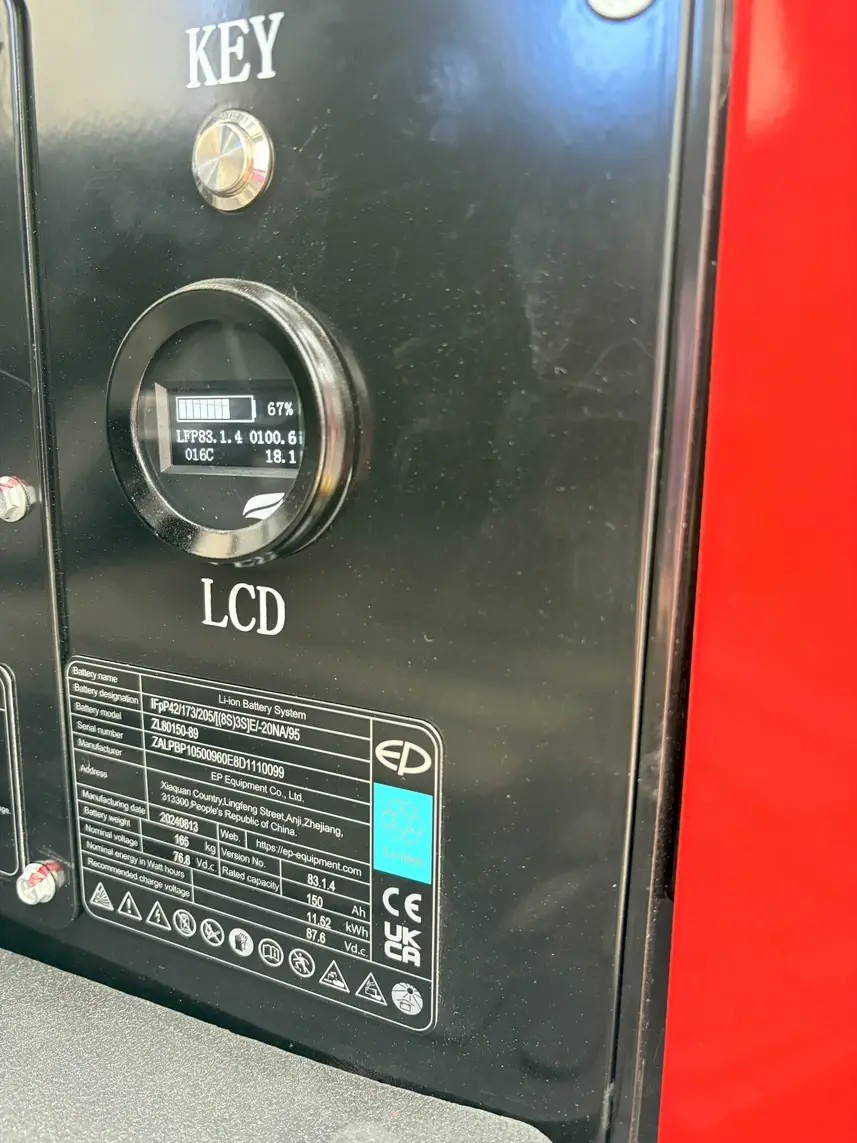

Battery
80V/150Ah Li-ion Battery

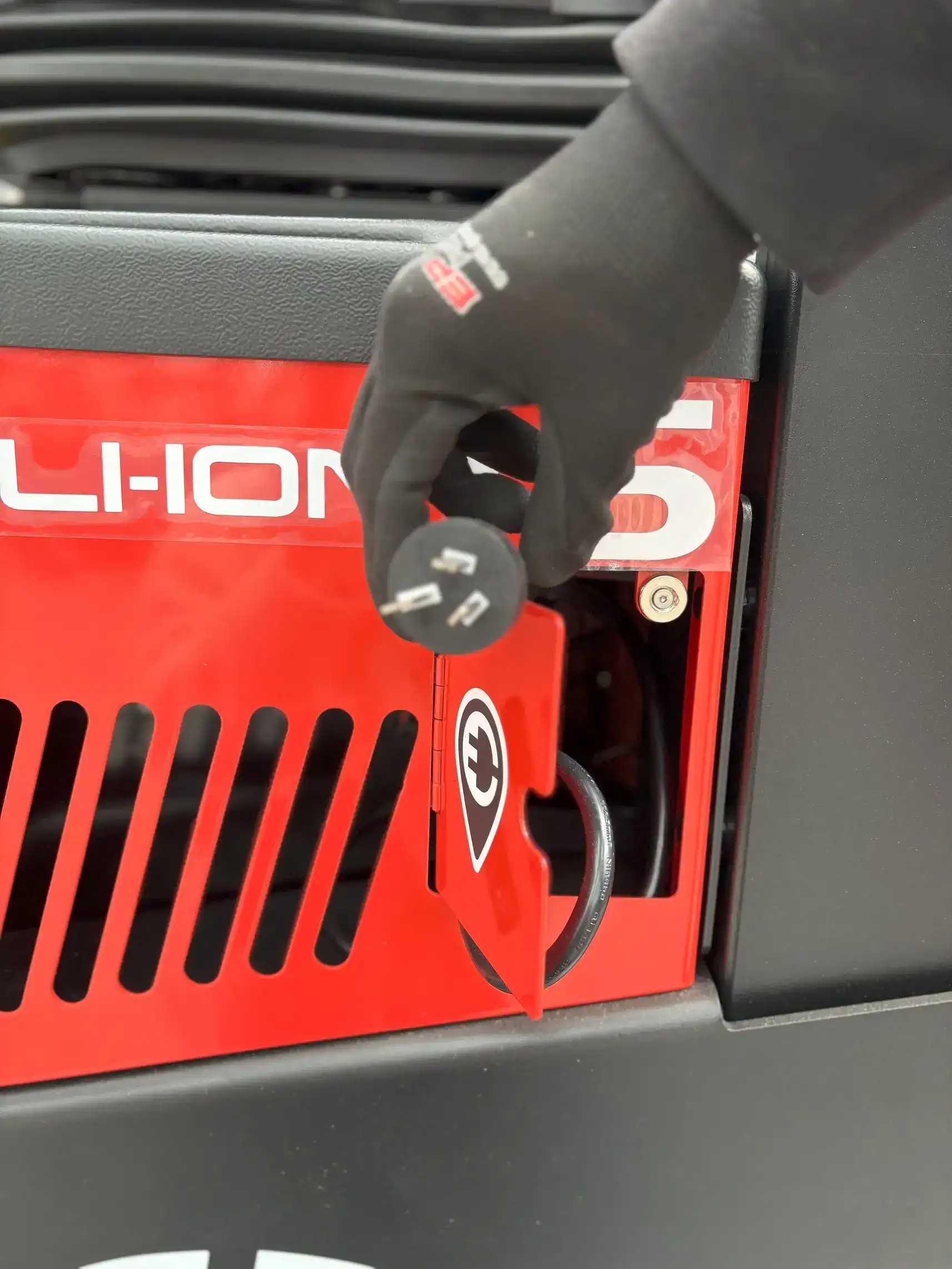

Charger
80V/35A Integrated Three-Phase Charger
Attachments
Side-Shift, Fork Positioner
Special Feature
Cold Storage Protection(-20°C)
4.8m 3-Stage Container Mast | Non-Marking Tyres
Small on the outside, spacious on the inside. By utilizing a high-density, compact lithium battery, we have freed up the cabin architecture to provide a massive 394mm of legroom. Coupled with an optimized brake pedal layout, operators experience significantly less lower-body fatigue during demanding shifts.
Unlike conventional 48V indoor forklifts, the CPD15TVL is armed with an 80V electrical system driving twin 5.0kW AC motors. This dual-drive setup delivers instant torque, exceptional traction, and higher energy efficiency—providing up to 6 hours of relentless productivity on a single charge.
With a chassis length of just 1813mm (to fork face) and a remarkable turning radius of 1450mm, this 3-wheel electric truck effortlessly pivots on its own axis. It is the definitive solution for maximizing storage density in warehouses where aisle space is at an absolute premium.
The CPD15TVL is EP Equipment's definitive answer to high-density indoor warehousing. Fully engineered around lithium-ion technology rather than retrofitting an old lead-acid chassis, this 3-wheel counterbalance forklift achieves an unprecedented balance of compact geometry and 80V heavy-duty lifting power. The upgraded mast minimizes sway at high elevations, ensuring every pallet is handled with absolute confidence.
Designed strictly for indoor excellence, the CPD15TVL excels in e-commerce fulfillment centers, cold chain storage, food & beverage distribution, and 3PL logistics hubs. Its ability to operate seamlessly in aisles tighter than 3.5 meters allows businesses to optimize racking layouts and increase overall warehouse storage capacity.
Powered by an 80V system and twin 5.0kW AC traction motors, delivering significantly higher power efficiency than standard 48V models and ensuring up to 6 hours of continuous high-intensity operation.
Engineered with an ultra-tight turning radius starting from just 1450mm, making it the perfect workhorse for navigating highly confined warehouse aisles as narrow as 3.3 meters.

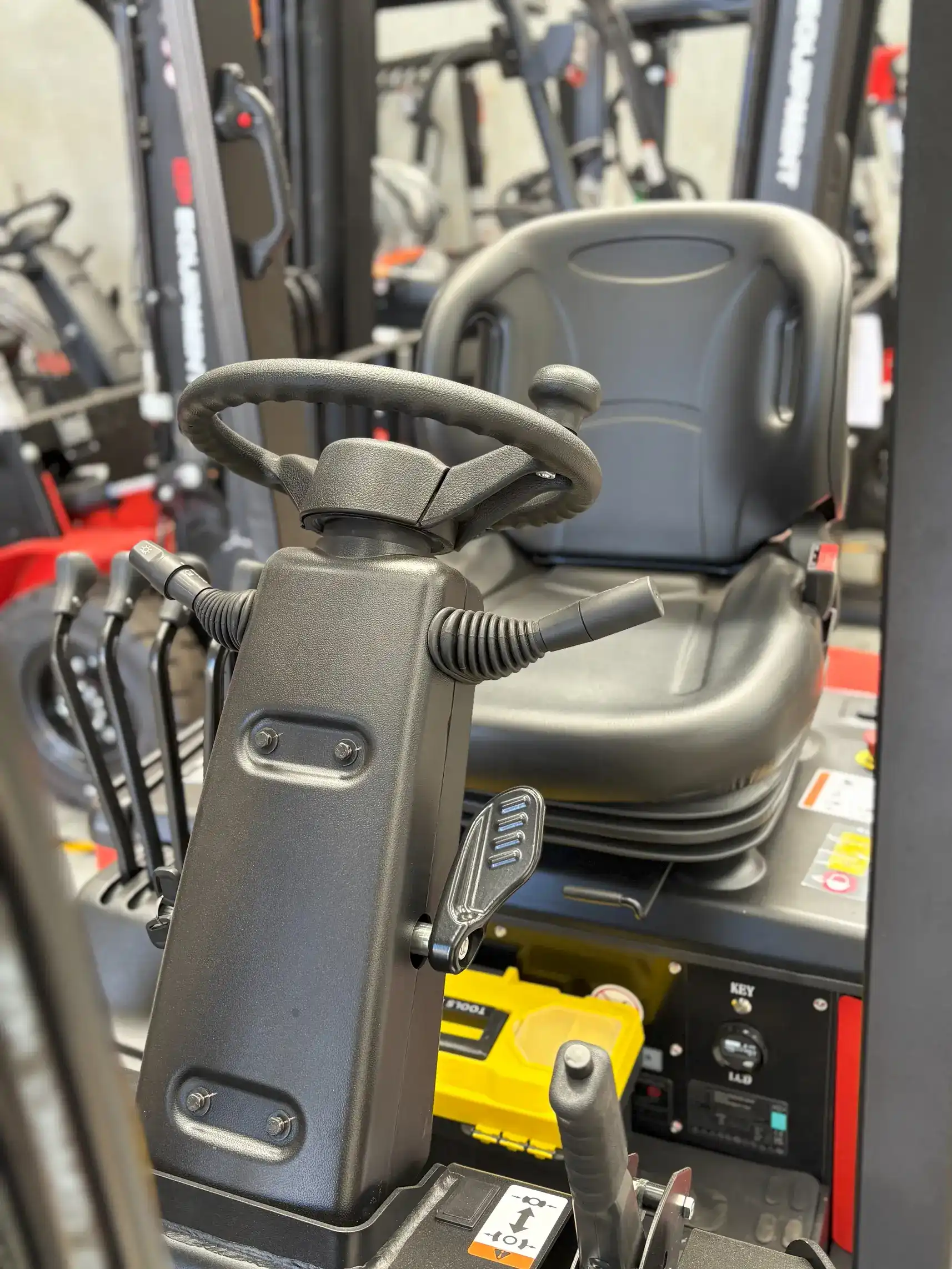

Thanks to the highly compact EP lithium-ion battery geometry, the cabin offers an expanded 394mm of legroom, significantly reducing physical fatigue during long shifts.
Adopts an upgraded, high-strength mast structure that minimizes wobbling and ensures precise, secure load handling even at maximum lifting heights.
Optimized for high-throughput environments, our latest stock features powerful 3-phase integrated chargers for rapid replenishment. Additionally, the system is fully customizable with single-phase configurations to suit facilities without industrial power access.
From standard dry warehouses to specialized cold storage facilities, this series offers a dedicated 'TV8' variant. Specifically engineered with moisture-resistant components and low-temp fluids, it ensures reliable performance in freezing conditions.
Turn Operational Expenses into Assets
Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.
Immediate Ownership & Tailored Repayments
Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.
Predictable Costs, Zero Maintenance Stress
Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.
The choice comes down to your operating environment and space constraints. A 3-wheel forklift features a central rear steering wheel that allows for 90-degree turns, enabling the truck to pivot on its own axis. This makes it the ultimate solution for indoor warehousing with smooth floors, where maximizing storage density is the top priority. Conversely, if your operations involve uneven outdoor yards, gravel, or loading docks, a 4-wheel model (like our EFL series) provides a wider stability triangle and larger tires for rough terrain.
The TVL series is highly compact. For instance, the CPD15TVL features a turning radius of just 1450mm, allowing it to operate seamlessly in narrow aisles as tight as 3.3 meters (when handling standard 800x1200mm pallets lengthways).
To meet the demand for maximum uptime, our current stock primarily features high-speed 3-phase integrated chargers. However, the series is masterfully designed for modularity—single-phase charging configurations remain available as a custom option for businesses requiring plug-and-play convenience from standard outlets.
Yes. The TVL series can be configured with a cold storage protection package, which includes specialized battery insulation and moisture protection, allowing it to operate reliably in temperatures down to -20°C. However, if your facility requires continuous operation in extreme deep-freeze environments colder than -20°C, we recommend exploring our dedicated TV8 cold storage series.
The 80V architecture combined with twin AC traction motors allows the front wheels to rotate in opposite directions. This enables the truck to pivot on its own axis, delivering an exceptionally tight turning radius (starting from just 1450mm) and allowing seamless operation in aisles as narrow as 3.3 meters.
EP Equipment utilizes Lithium Iron Phosphate (LFP) cell technology, which is engineered to deliver upwards of 4,000 charge cycles. Paired with our proprietary Battery Management System (BMS) that actively prevents overcharging and deep discharging, the battery typically lasts the entire operational lifecycle of the forklift without power degradation.
Lead-acid batteries require a strict 8-hour charge followed by an 8-hour cooling period and suffer from 'memory effect'. In contrast, EP's lithium-ion batteries support opportunity charging—allowing operators to plug in the equipment during 15-minute coffee breaks or shift changes. This eliminates the need for spare batteries and dedicated charging rooms, enabling seamless 24/7 operation.
Lithium-ion battery removes the daily and weekly maintenance burdens associated with traditional power sources. There is zero battery watering, no acid equalization, no engine oil changes, and no filter replacements. Maintenance is strictly reduced to routine mechanical inspections (such as brakes, tires, and mast lubrication).
Absolutely. EP strictly utilizes LFP (Lithium Iron Phosphate) chemistry, which is fundamentally more thermally stable than NMC chemistries used in consumer electronics. Our battery packs emit zero harmful gases during operation or charging, making them perfectly safe for enclosed, unventilated indoor spaces.
Many EP models are equipped with advanced Telematics. This system provides fleet managers with real-time data on truck location, operational hours, battery health diagnostics, and impact reports. It also supports RFID card access, ensuring only authorized personnel can operate the equipment.
