Very narrow aisle operations demand precision, stability, and maximum space optimization. In high-density warehouses where every square meter directly impacts storage capacity and operational cost, selecting the right equipment is a strategic decision rather than a simple procurement task.
EPower Forklift specializes in material handling solutions engineered for confined environments, offering models designed to operate efficiently in extremely tight aisles without compromising load capacity or safety. For facilities seeking compact performance with high maneuverability, forklifts with a turning radius under 2000mm provide a clear competitive advantage. Let's explore the top 5 very narrow aisle forklifts and pick your best option!
1. What are very narrow aisle forklift trucks?
Very narrow aisle forklift trucks(often abbreviated as VNA forklifts) are specialized material handling equipment engineered to operate in ultra-tight aisles and high-density storage environments that standard forklifts cannot access efficiently. Unlike conventional forklifts or reach trucks, VNA forklifts are purpose-built to maximize available space in modern warehouses by enabling aisle widths as narrow as about 1.5 to 2.0 meters, allowing facilities to significantly increase racking and storage capacity within the same footprint.
2. Top 5 very narrow aisle forklifts from EPower Forklift for high-density warehouses
For warehouses focused on maximizing storage density and operational efficiency, choosing the right forklift model is critical. Below are five standout very narrow aisle forklift options from EPower Forklift, each offering specifications tailored for tight aisles, high stacking, and intensive material handling.
H3: CQD15S Electric Reach Truck - 34,xxx.xx

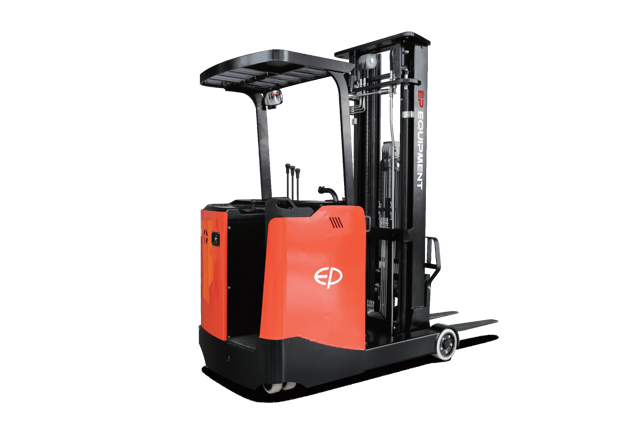

The CQD15S is a purpose-built electric reach truck designed specifically for narrow-aisle and high-racking warehouse operations. It combines compact dimensions with high lift ability and efficient lithium-ion power.
Load capacity: 1500kg
Lift height: 3000-7500mm (Triplex Mast options)
Battery: 48V/360Ah lithium-ion
Min. aisle width: 2770mm (suitable for very narrow aisles)
Turning radius: 1765mm
Features: stand-on operator platform for quick hops in/out, sideshift, ZAPI AC drive controller, energy-efficient AC motors, ergonomic controls
This model’s compact width and elevated mast options help warehouses stack pallets deeply and access goods efficiently, optimizing use of vertical space. Besides, the CQD15S also offers a stand-on platform to enhance visibility and maneuverability, making it ideal for tight spaces and frequent load handling.

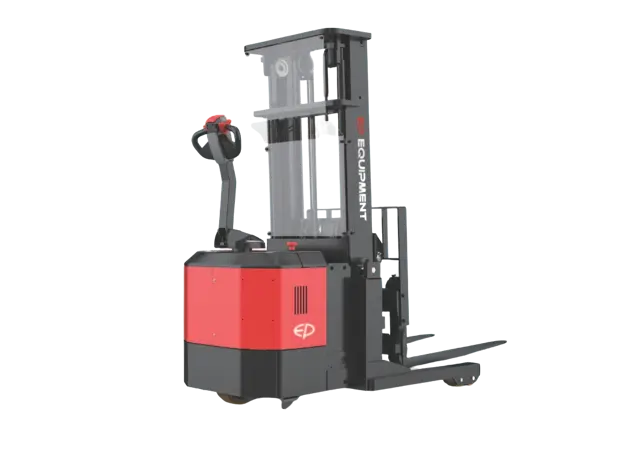

H3: EP CQE15S - Electric Walkie Reach Truck -$21,xxx.xx
CQE15S is a pedestrian-operated reach stacker designed for deep racking systems and confined aisle widths. It is particularly effective where precision and delicate load handling are priorities.
Load capacity: 1500kg
Lift height: 3200-6000mm
Min. aisle width: 2690mm
Turning radius: 1590mm
Battery: 24V
Working in a cold store (above -20°C)
Features: scissor fork design for deep pallet retrieval, turtle speed for precise maneuvering, proportional lifting system, optional lithium-ion battery upgrade
The CQE15S’ turtle speed and scissor forks make it ideal where careful placement and retrieval from deep racks are necessary without compromising speed or safety.
This model is easy to operate as no license is required. This is a plus for businesses with limited training resources. Its simple controls help operate quickly and reduce the time for training.

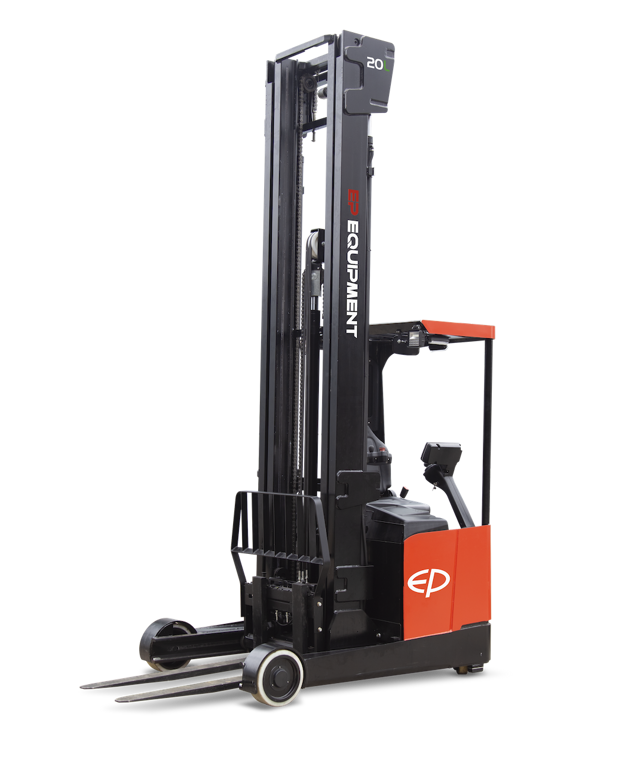

H3: CQD20L - Electric Reach Truck - $44,xxx.xx
Load capacity: 2000kg
Lift height: 3000-12000mm
Battery: 48V/405Ah or 48V/560Ah Lithium Battery
Min. Aisle Width: 2885mm
Turning radius: 1770mm
Features: electric power steering, optimal visibility, ultra-quiet performance, enjoy 50% faster stacking, 30% less energy consumption, and a 10 dB reduction in noise
The CQD20L is primarily designed for medium-to-large warehouse operations such as logistics, textiles, and home appliance manufacturing. Its compact chassis, 1770 mm turning radius, and high lift capability make it particularly suitable for tight aisle layouts and high-bay racking environments.
H3: CPD18TVL - Dual-Drive Lithium Forklift - $28,xxx.xx
The CPD18TVL is the slightly more powerful variant in the TVL family, increasing capacity and lift height while retaining a compact footprint for confined aisles.
Load capacity: 1800kg
Battery: 80V/205Ah lithium-ion
Lift height: 3000-6000mm
Min. aisle width: 3400mm
Turning radius: 1550mm
Features: dual 5kW drive motors for efficient travel and lifting, ergonomic layout with spacious legroom, opportunity charging support for 6+ hours of continuous operation.
CPD18TVL is suitable for medium- to heavy-duty narrow aisle operations where stacking and throughput demands are higher. This model is equipped with a fully enclosed cabin, providing operators with effective protection from weather and external hazards while ensuring stable and consistent working conditions.

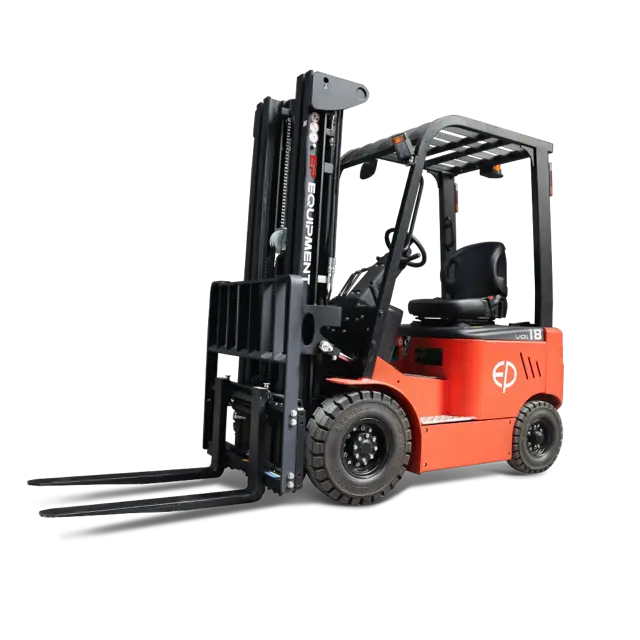

H3: EFL181 - Four-Wheel Lithium Counterbalance Forklift - $26,xxx.xx
The EFL181 brings a 4-wheel counterbalance design with lithium-ion power that suits warehouses and mixed indoor/outdoor work when compact maneuverability and straightforward operation are priorities.
Load capacity: 1800kg
Battery: 48V/150Ah lithium-ion
Lift heights: 4800-5500mm (depending on mast configuration)
Min. aisle width: 3725mm
Turning radius: 1920mm
Features: integrated onboard charger for plug-and-play charging, ergonomic operator space with good visibility, solid rubber tyres for indoor and yard use, opportunity charging capability
While not as narrow as dedicated reach trucks, the EFL181’s compact footprint and lithium-ion system make it effective for warehouses with a mix of counterbalance needs and space constraints.
3. How EPower Forklift supports high-density warehouse optimization
Very narrow aisle forklifts from EPower Forklift are designed with warehouse density and productivity in mind. Key ways these models support high-density operations include:
Space optimization: reach trucks like CQE15S CPD15TVL;perate in very small aisle widths, enabling more racking and pallet positions per square meter.
Lithium-ion efficiency: Lithium-ion batteries allow opportunity charging, reducing downtime and extending uptime between charges.
Maneuverability: tight turning radii and compact dimensions ensure trucks can navigate narrow aisles and complex rack layouts with precision.
Ergonomics and safety: ergonomic platforms, proportional controls, and advanced drive systems reduce operator fatigue and improve cycle times across shifts.
4. Conclusion
For high-density warehouses, selecting the right very narrow aisle forklift trucks from EPower can significantly improve storage utilization and operational efficiency. Models like CQD15S, CQE15S, and CQD20L excel in ultra-tight aisles and high stacking environments, while the CPD18TVL series offers flexible counterbalance performance in compact spaces. The EFL181 expands operational versatility with a four-wheel design and integrated lithium-ion system.
Across all these options, EPower’s focus on lithium-ion power, compact footprint, maneuverability, and operator comfort helps warehouses reduce downtime, increase throughput, and effectively manage dense storage layouts.
