EP CQD15S
Electric 1.5T Stand-on Reach Truck (Lithium-powered)

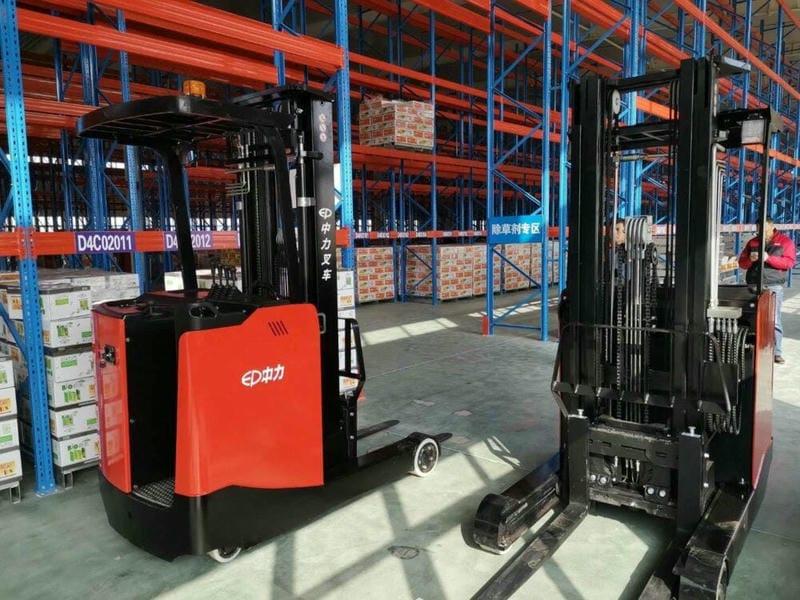

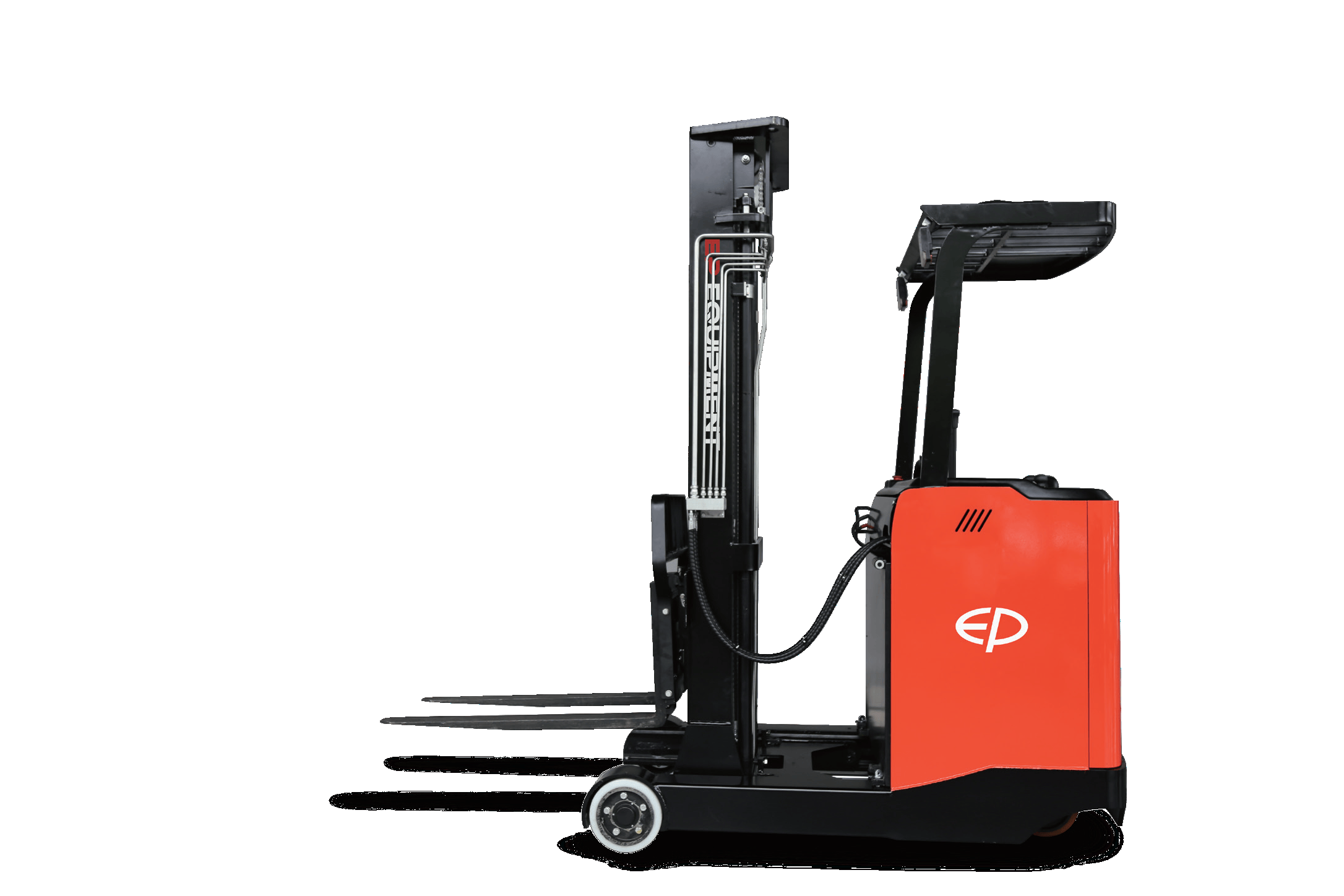

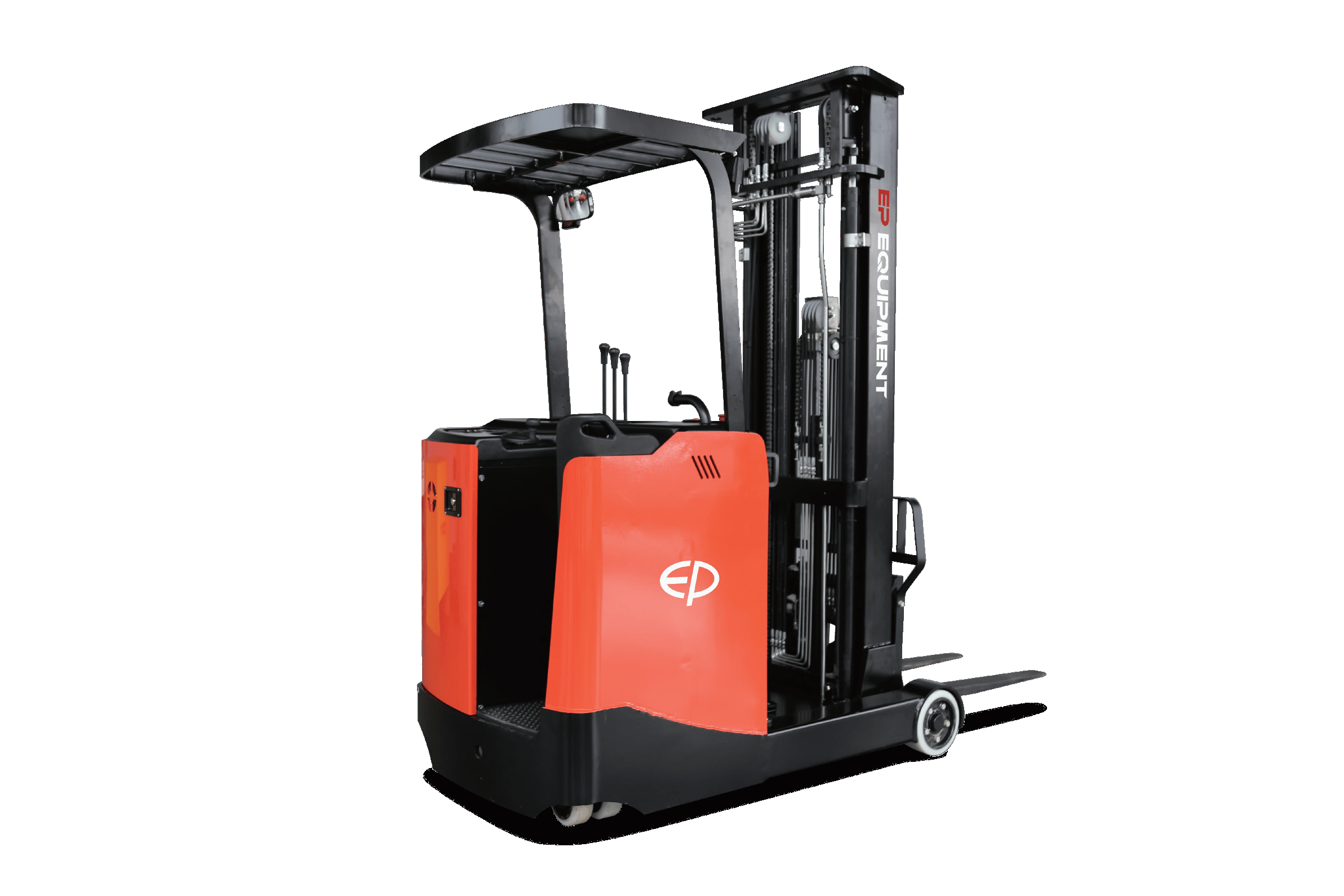

The CQD15S is a 1500kg capacity Electric Reach Truck manufactured by EP Equipment with standing operation, 630mm moving-mast reach, sideshift and up to 7.5 metres lift heights. Designed for narrow-aisle warehousing, the CQD15S features a stand-on platform from which the operator can quickly dismount or re-mount as required.
Configure Your CQD15S
Customise with genuine accessories and options
Estimated Retail Price
$34,XXX.XXPrice subject to final quotes
Full Specifications
| Identification | |
|---|---|
| Manufacturer | EP Equipment |
| Drive Type | Electric |
| Operator Type | Standing |
| Load Capacity | 1,500kg |
| Load Center Distance | 600mm |
| Weight | |
| Service Weight (incl. battery) | 2,370kg |
| Dimensions | |
| Overall Width | 1,090mm |
| Truck Body Length | 1,265mm |
| Turning Radius | 1,765mm |
| Min. Aisle Width | 2,770mm |
| Ground Clearance (Mast) | 70mm |
| Ground Clearance (Wheelbase) | 70mm |
| Default Fork Dimension | 40(T) * 100(W) * 1,070(L)mm |
| Performance | |
| Travel Speed (Laden) | 8.5km/h |
| Travel Speed (Unladen) | 9km/h |
| Lifting Speed | 0.28 / 0.44m/s |
| Max Gradeability (Laden) | 8% |
| Max Gradeability (Unladen) | 10% |
| Electrical System | |
| Battery Voltage | 48V |
| Battery Capacity | 420Ah |
The CQD15S Advantage
Electric Power Steering
This Truck comes with full AC motors and electric power steering system that consumes less power compared to hydraulic power steering while keeps operation habits of trucks with mechanical steering through the additional damping force.
Next-Generation Lithium Power
Equipped with an advanced lithium-ion system, it completely eliminates the hassle of daily watering and maintenance while delivering consistent performance. Supporting a plug-and-play opportunity charging mode, operators can quickly recharge during coffee breaks or shift changes. This highly energy-efficient design significantly reduces downtime, easily meeting the high-intensity continuous operational needs of multi-shift schedules without the need for spare batteries.
Visibility
The CQD15S features a comfortable standing operation design, allowing operators to easily hop on and off for fast-paced warehouse tasks. Its ergonomic stand-on platform enhances visibility and maneuverability, making it ideal for tight aisles and frequent load handling.
About CQD15S
The CQD15S is comfortable to operate, with a vibration-absorbing floor, backrest, electronic power steering and proportional lever controls - optionally upgraded to electronic fingertip controls. A range of safety features are provided, including overhead guarding, anti-rollback control, operator-presence switch and hose-burst protection.
It is suitable for professional 24/7 logistics operations. Quality European components and a ZAPI AC drive controller ensure downtime is minimised. Additionally, the standard triplex 4.5m mast with free-lift allows operation in restricted spaces such as truck bodies and shipping containers.
Application

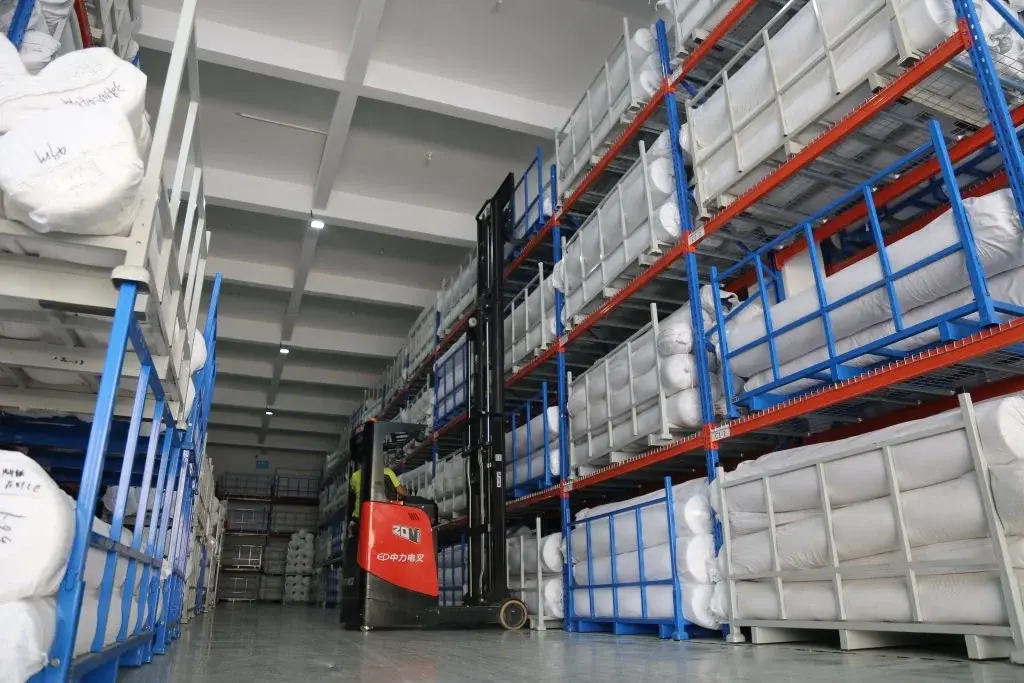

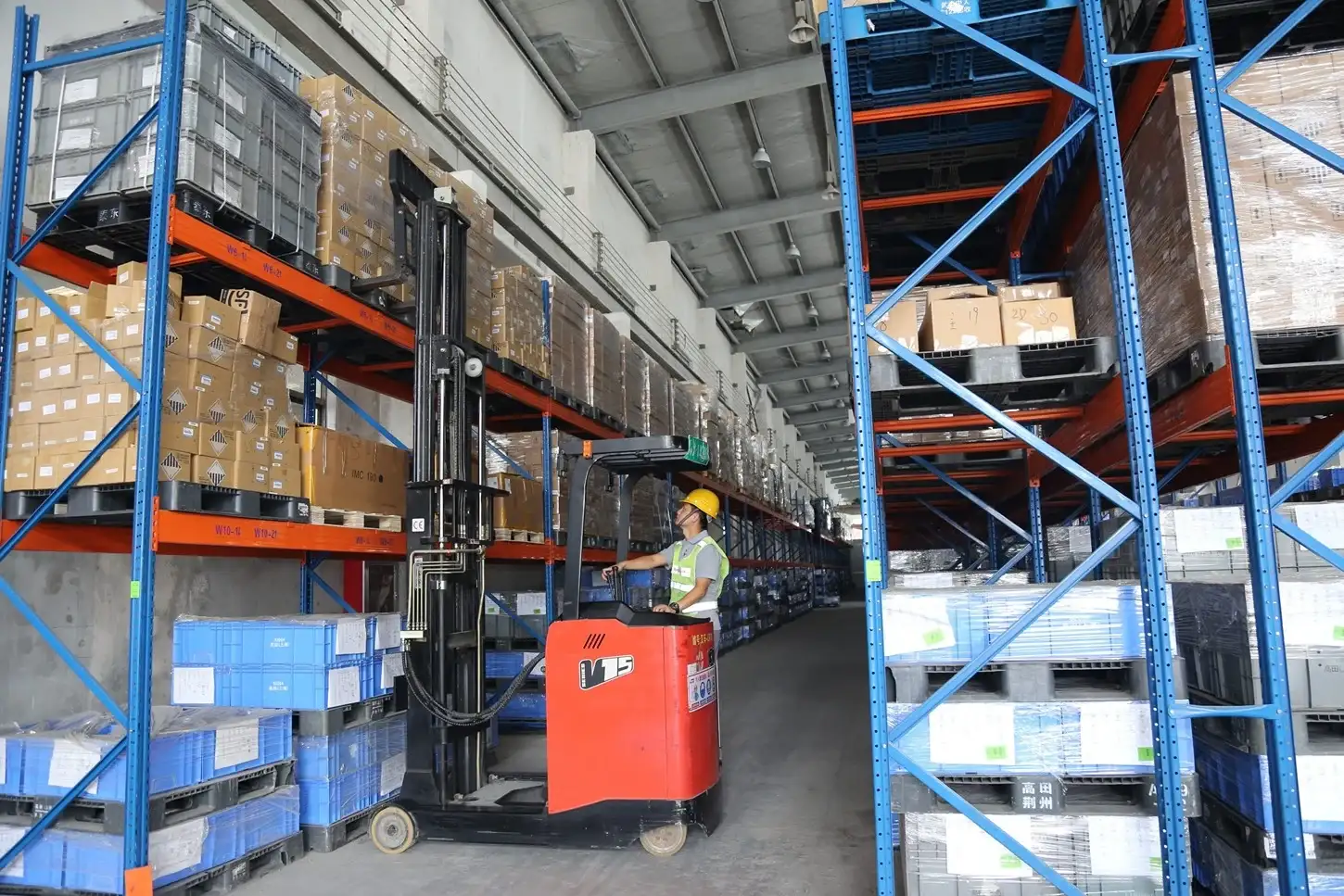

Electric stand-on reach truck especially for narrow aisles and high racking use. Good efficiency on stacking, reaching. Floating balance driving system ensures comfortable control, fixed driving system ensures best stability.
Smart Financing Solutions to Fuel Your Growth
Rent-to-Own Solutions
Turn Operational Expenses into Assets
Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.
Chattel Mortgage
Immediate Ownership & Tailored Repayments
Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.
Fully-Maintained Operating Lease
Predictable Costs, Zero Maintenance Stress
Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.
You May Also Like...
Frequently Asked Questions
This reach truck is specifically designed for narrow aisles and high-level racking. Its mast can 'reach' forward to pick up or drop off loads while keeping the load's center of gravity within the wheelbase. This eliminates the need for the massive rear counterweight found on standard forklifts, resulting in a highly compact chassis and a much tighter turning radius—making it the ultimate choice for indoor high-density warehousing.
Not at all. The high-performance Lithium-ion (Li-ion) battery standard on this model completely eliminates the need for watering, equalizing, and the regular maintenance associated with traditional lead-acid batteries. Furthermore, it supports plug-and-play opportunity charging, allowing operators to quickly recharge during coffee breaks or shift changes to easily sustain high-intensity, continuous operations.
Yes. Because this machine is equipped with a high-capacity Li-ion battery to handle heavy-duty, high-level stacking tasks, it comes standard with an external Three-Phase charger. This ensures a very high charging current and maximum efficiency, rapidly restoring the truck to full power in a short amount of time and minimizing downtime.
