EP CQD20LB
Electric 2T Reach Truck (Lithium-powered)
The CQD20LB is a highly efficient 2000kg Li-ion reach truck, custom-tailored for mid-to-high level standard warehouse racking. It offers a maximum lifting height of up to 9500mm and an outstanding fork reach distance of 610mm. This model emphasizes excellent maintenance convenience and ergonomic design, featuring an innovative turnable seat compartment and external charging port, making it a highly cost-effective choice for daily multi-shift logistics handling.
Configure Your CQD20LB
Customise with genuine accessories and options
Estimated Retail Price
$44,XXX.XXPrice subject to final quotes
Full Specifications
| Identification | |
|---|---|
| Manufacturer | EP Equipment |
| Drive Type | Electric |
| Operator Type | Seated |
| Load Capacity | 2,000kg |
| Load Center Distance | 600mm |
| Weight | |
| Service Weight (incl. battery) | 3,940kg |
| Dimensions | |
| Overall Width | 1,270mm |
| Truck Body Length | 1,373mm |
| Turning Radius | 1,770mm |
| Min. Aisle Width | 2,885mm |
| Ground Clearance (Mast) | 70mm |
| Ground Clearance (Wheelbase) | 75mm |
| Default Fork Dimension | 40(T) * 120(W) * 1,070(L)mm |
| Performance | |
| Travel Speed (Laden) | 9km/h |
| Travel Speed (Unladen) | 9.5km/h |
| Lifting Speed | 0.45 / 0.55m/s |
| Max Gradeability (Laden) | 10% |
| Max Gradeability (Unladen) | 15% |
| Electrical System | |
| Battery Voltage | 48V |
| Battery Capacity | 405Ah |
The CQD20LB Advantage

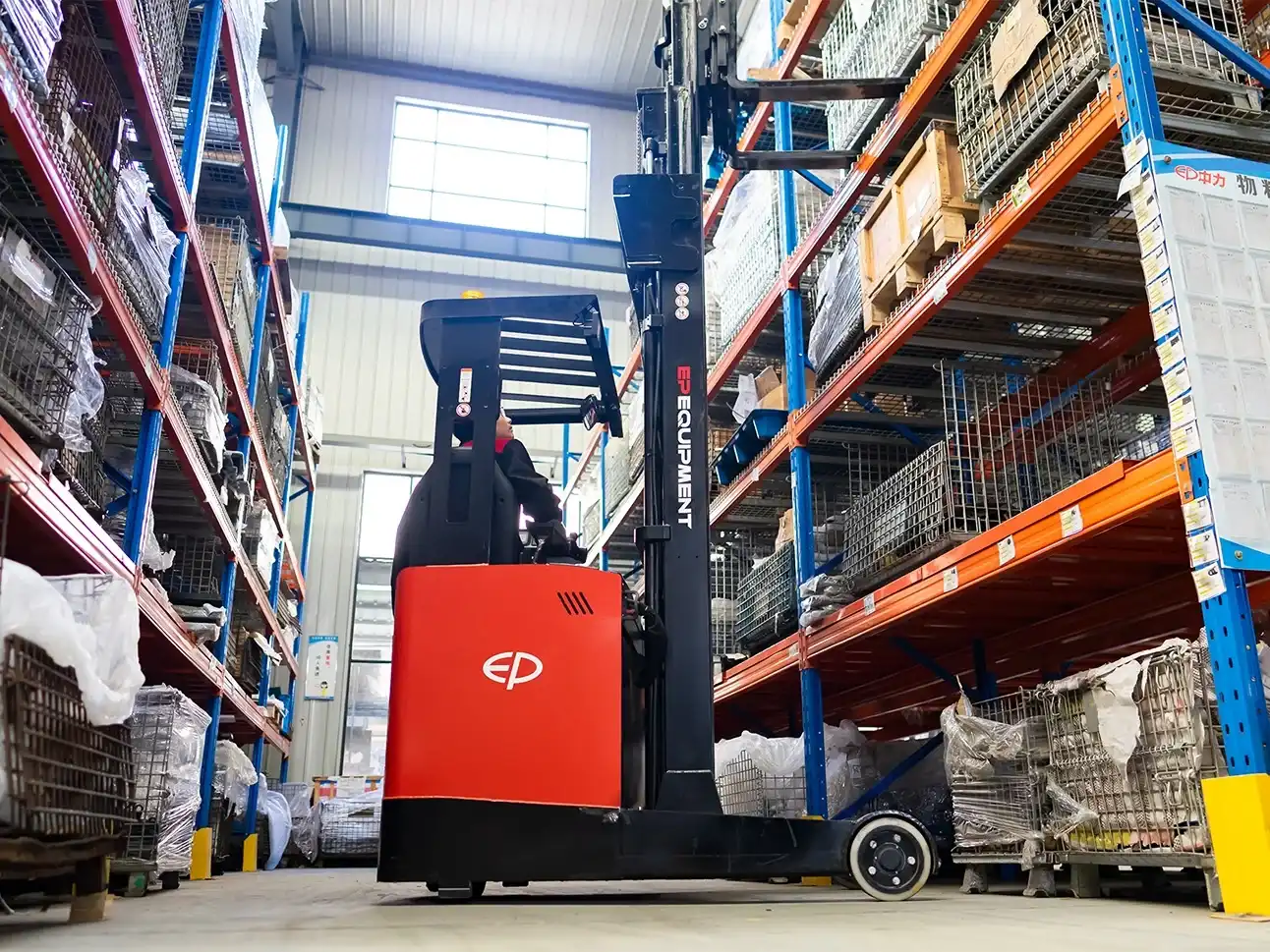

9.5m Reinforced Mast & Panoramic Visibility
Optimized for mid-to-high level warehousing. The mast cylinders are cleverly relocated to the sides, completely eliminating visual obstructions. This vibration-free reinforced mast design ensures absolute safety and an unobstructed upward view when operating at heights up to 9.5 meters.
Advanced Maintenance-Free Li-ion System
Comes standard with a high-capacity 48V/405Ah Li-ion battery (with an optional 560Ah upgrade), completely eliminating the hassle of daily watering and maintenance. Supporting a plug-and-play opportunity charging mode, operators can quickly recharge during coffee breaks or shift changes, easily meeting the high-intensity continuous operational needs of multi-shift schedules without spare batteries.
Spacious Cabin & Fingertip Control
Offers class-leading spacious legroom and a premium suspension seat. Paired with a full-color LCD display, damped electric steering, and a proportional hydraulic joystick, it allows operators to maintain fatigue-free, high-efficiency operation even during the longest shifts.
Optimized for Mid-to-High Level Warehouses
The CQD20LB strikes a perfect balance between performance and daily practicality. Abandoning the pursuit of extreme heights, it is built on a robust chassis optimized for warehouses with racking under 9.5 meters. Its impressive 610mm fork reach distance allows operators to more easily extend past support legs or reach deep into racks to access pallets. Combined with proportional lifting controls, it ensures exceptionally gentle and precise handling of fragile or heavy goods, reducing product damage and boosting operational efficiency.
Applications
As a highly cost-effective and efficient handling equipment, the CQD20LB is widely applicable in third-party logistics (3PL) distribution centers, e-commerce sorting warehouses, food and beverage storage, and modern manufacturing plants. With a compact turning radius of 1770mm, it navigates effortlessly in space-restricted environments and narrow aisles. It is the reliable and flexible equipment you need to keep inventory flowing smoothly in mid-to-high level racks.
Smart Financing Solutions to Fuel Your Growth
Rent-to-Own Solutions
Turn Operational Expenses into Assets
Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.
Chattel Mortgage
Immediate Ownership & Tailored Repayments
Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.
Fully-Maintained Operating Lease
Predictable Costs, Zero Maintenance Stress
Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.
You May Also Like...
Frequently Asked Questions
The lifting height of the CQD20LB is customizable and can reach up to 9500mm, making it perfect for mid-to-high level warehousing needs.
The rated load capacity is 2000kg (2 tons).
The reach distance extends up to 610mm, making it easier to retrieve pallets deeper within the racks.
The CQD20LB is equipped with an advanced Li-ion battery system, offering 48V/405Ah or 48V/560Ah capacity options to meet different operational demands.
The CQD20LB features a compact turning radius of 1770mm, allowing it to navigate effortlessly in confined warehouse spaces.
This reach truck is specifically designed for narrow aisles and high-level racking. Its mast can 'reach' forward to pick up or drop off loads while keeping the load's center of gravity within the wheelbase. This eliminates the need for the massive rear counterweight found on standard forklifts, resulting in a highly compact chassis and a much tighter turning radius—making it the ultimate choice for indoor high-density warehousing.
Not at all. The high-performance Lithium-ion (Li-ion) battery standard on this model completely eliminates the need for watering, equalizing, and the regular maintenance associated with traditional lead-acid batteries. Furthermore, it supports plug-and-play opportunity charging, allowing operators to quickly recharge during coffee breaks or shift changes to easily sustain high-intensity, continuous operations.
Yes. Because this machine is equipped with a high-capacity Li-ion battery to handle heavy-duty, high-level stacking tasks, it comes standard with an external Three-Phase charger. This ensures a very high charging current and maximum efficiency, rapidly restoring the truck to full power in a short amount of time and minimizing downtime.
