EP ESA121-D
Electric 1.2T Pallet Stacker

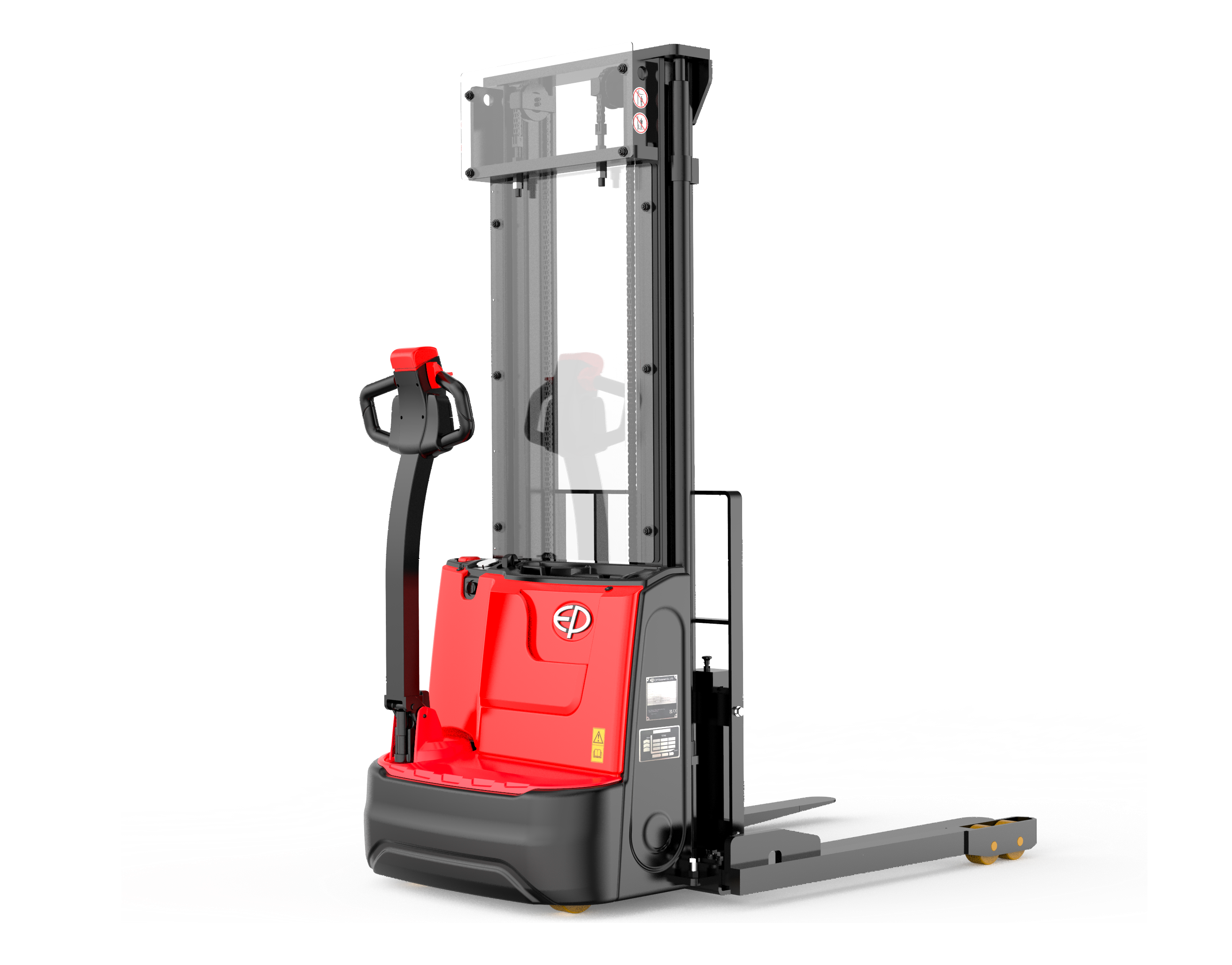

The ESA121-D is a modern, compact, and robust multipurpose stacker designed for reliability and performance. Equipped with “plug and play” features, it delivers faster lifting and lowering speeds for enhanced stacking efficiency. Its user-friendly design includes a practical cover with storage for documents, personal items, and a cup holder, along with an optional USB port for convenient device charging. Available with both AGM and lithium battery options to suit different operational needs, it also comes with an integrated charger for added convenience.
Configure Your ESA121-D
Customise with genuine accessories and options
Estimated Retail Price
$7,0XX.XXPrice subject to final quotes
Full Specifications
| Identification | |
|---|---|
| Manufacturer | EP Equipment |
| Drive Type | Electric |
| Operator Type | Seated |
| Load Capacity | 1,200kg |
| Load Center Distance | 600mm |
| Weight | |
| Service Weight (incl. battery) | 820kg |
| Dimensions | |
| Overall Width | 1,156 - 1,384mm |
| Truck Body Length | 650mm |
| Turning Radius | 1,475mm |
| Min. Aisle Width | 2,263mm |
| Ground Clearance (Mast) | 30mm |
| Ground Clearance (Wheelbase) | 40mm |
| Fork Dimension | 40(T) * 100(W) * 1,070(L)mm |
| Performance | |
| Travel Speed (Laden) | 4km/h |
| Travel Speed (Unladen) | 4.5km/h |
| Lifting Speed | 0.15 / 0.24m/s |
| Max Gradeability (Laden) | 3% |
| Max Gradeability (Unladen) | 10% |
| Electrical System | |
| Battery Voltage | 24V |
The ESA121-D Advantage

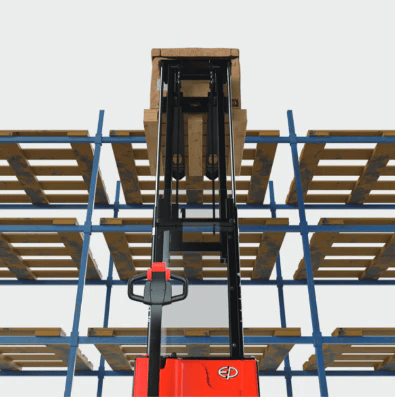

Stable Duplex Mast & Straddle Legs
Unlike standard wrap-over stackers, the ESA121-D features adjustable straddle legs that easily fit around Australian closed-bottom CHEP pallets. Combined with a rigid H-beam duplex mast and twin side cylinders, it offers excellent forward visibility and minimizes frame torsion during heavy 1.2-ton lifts.
Maintenance-free battery
The ESA121-D comes with highly reliable, maintenance-free AGM batteries (Lithium-ion upgrades available to order). It provides a completely hassle-free experience with no water top-ups required. The built-in integrated charger allows you to plug directly into a standard wall outlet for maximum daily convenience.
No Forklift License Required
As a pedestrian walkie stacker, the ESA121-D allows for immediate operation without the need for a high-risk LF forklift license. Its intuitive dual-hand controls, anti-rollback brakes, and automatic speed reduction features ensure operators can handle loads safely with minimal training.
The Perfect Straddle Stacker for CHEP Pallets
The EP ESA121-D is a 1.2-ton electric walkie stacker specifically designed to overcome the limitations of standard stackers in the Australian market. Its adjustable straddle legs wrap around closed-bottom CHEP pallets with ease, providing a wider, more stable footprint. With a compact chassis designed to navigate narrow aisles, it is the ultimate space-saving solution for tight warehouses, retail backrooms, and distribution centers.
Reliable Performance & Smart Design
Engineered for maximum daily utility, the ESA121-D features a user-friendly upper cover with dedicated storage for documents, tools, and a cup. Driven by a market-proven electric drive unit and a maintenance-free AGM battery system, it delivers smooth lifting speeds and reliable traction. Standard safety features include an emergency stop button, hydraulic hose-burst protection, and an automatic speed reduction system, ensuring complete operator confidence when stacking at height.
Key Highlights
Adjustable Straddle Legs
Specifically designed to wrap around closed-bottom CHEP pallets. The adjustable straddle legs provide a wider, more stable footprint for safe and versatile lifting in Australian warehouses.

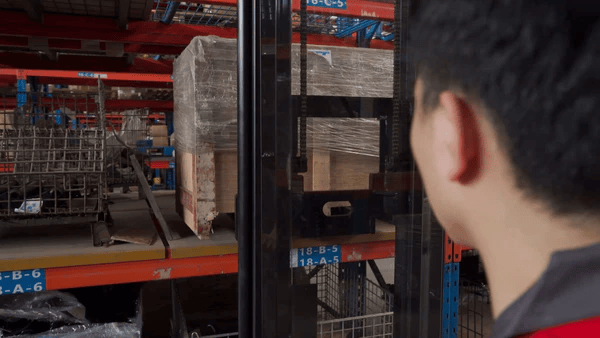

High-Visibility Duplex Mast
Features a rigid H-beam mast with twin side cylinders instead of a single central cylinder. This design offers excellent forward visibility and minimizes frame torsion during heavy lifts.
Maintenance-Free Power
Equipped with a highly reliable AGM battery that requires zero water top-ups. The integrated on-board charger allows you to conveniently plug into any standard wall outlet.
No Forklift License Required
As a pedestrian walkie stacker, operators do not need a high-risk LF forklift license. This significantly lowers hiring barriers and allows staff to operate the equipment after basic safety training.
Ultra-Compact Footprint
With a tight turning radius of just 1475mm, it effortlessly navigates narrow warehouse aisles, crowded retail backrooms, and confined distribution centers.

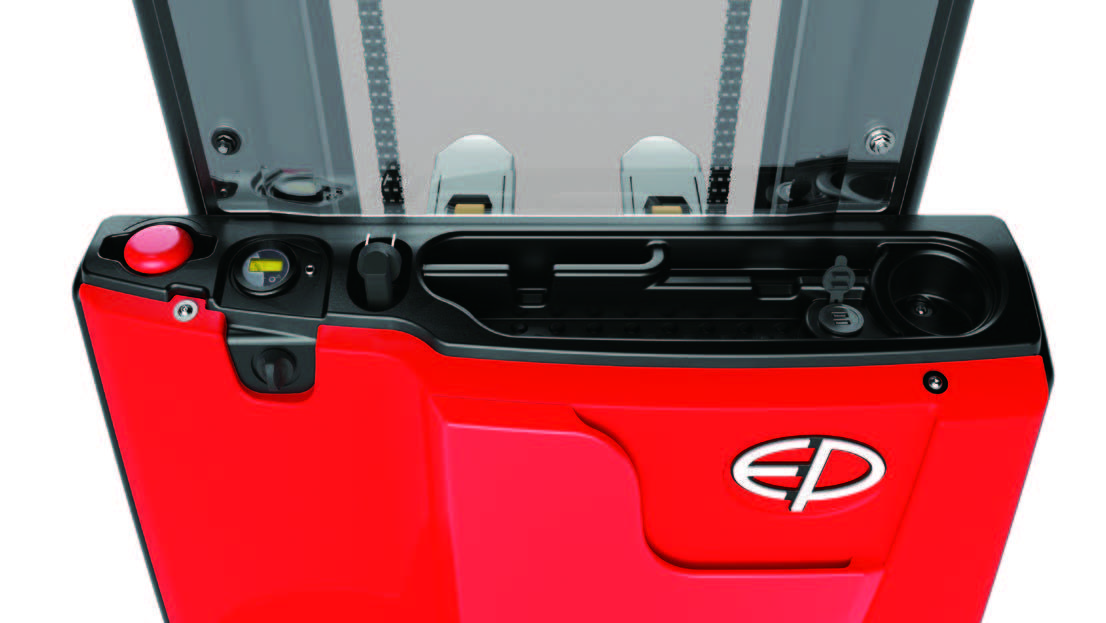

Smart Storage Cover
Engineered for daily utility, the stacker features a practical upper cover with dedicated space for documents, tools, and a cup, keeping essentials within the operator's reach.
Smart Financing Solutions to Fuel Your Growth
Rent-to-Own Solutions
Turn Operational Expenses into Assets
Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.
Chattel Mortgage
Immediate Ownership & Tailored Repayments
Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.
Fully-Maintained Operating Lease
Predictable Costs, Zero Maintenance Stress
Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.
You May Also Like...
Frequently Asked Questions
This ESA121-D electric stacker has a rated load capacity of 1200kg, making it well-suited for handling most pallet handling tasks in warehouses and retail environments.
Yes. Standard 'wrap-over' stackers fail on closed-bottom CHEP pallets, but this equipment is specifically engineered to handle Australian CHEP pallets and custom skids flawlessly through its adjustable straddle legs mechanism.
Yes. A common concern is whether the legs will fit inside a vehicle or on a tail lift. The ESA121-D is specifically designed with adjustable straddle legs that offer four different width settings (ranging from 1156mm to 1384mm). This allows you to narrow the legs to fit into the limited space of a delivery van or widen them to straddle a standard CHEP pallet. Its compact 1475mm turning radius further ensures agile maneuvering in these tight environments.
Yes. Unlike standard wrap-over stackers that cannot enter closed-bottom pallets, the ESA121-D features adjustable straddle legs. These legs wrap around the outside of the pallet, making it perfectly compatible with Australian CHEP pallets and various other custom skid sizes.
The truck is equipped with a highly reliable AGM battery that is 100% maintenance-free, meaning you never need to top it up with water. It also features a built-in integrated charger, so you can simply plug the stacker directly into any standard wall power outlet for hassle-free charging.
No. Because this equipment is pedestrian-operated, it does not require a High-Risk Work (LF) forklift license in Australia. This significantly reduces your training costs and hiring barriers, allowing staff to safely use the equipment after basic internal safety induction.
Yes, it is the ultimate space-saving solution. By eliminating the bulky seated cabin of a traditional forklift, this walkie stacker achieves an ultra-compact turning radius. Equipped with features like 'Turtle Speed', operators can navigate highly congested aisles and tight corners with absolute precision and safety.
Very safe. This electric stacker is equipped with intelligent safety systems, including automatic travel speed reduction when the forks are raised, anti-rollback brakes on ramps, and proportional lifting controls. These ensure that even fragile or heavy loads are placed onto high racks smoothly and securely.
