EP EFL203

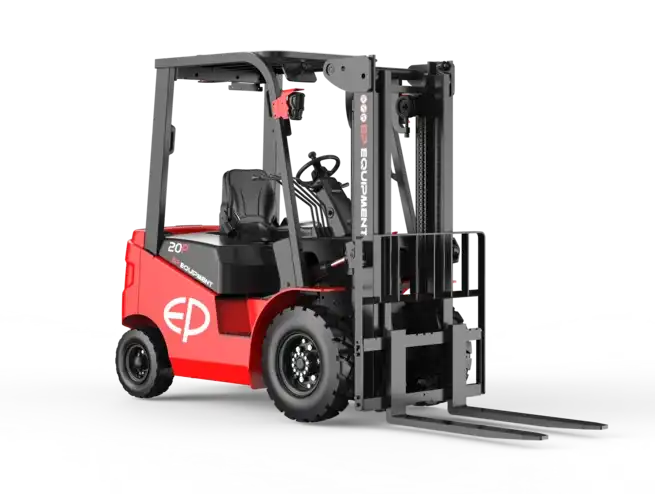

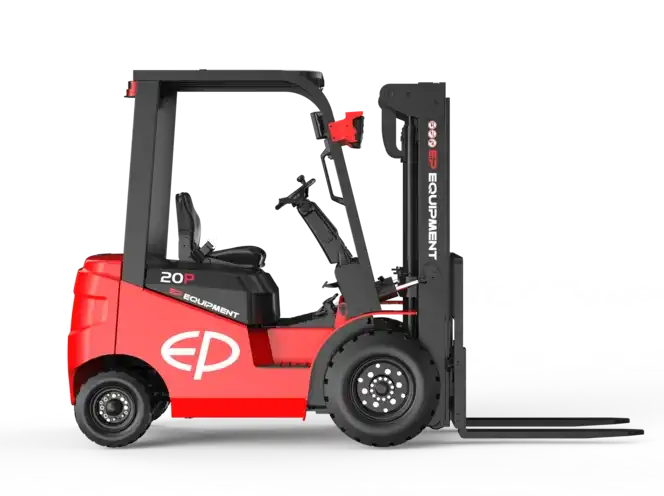

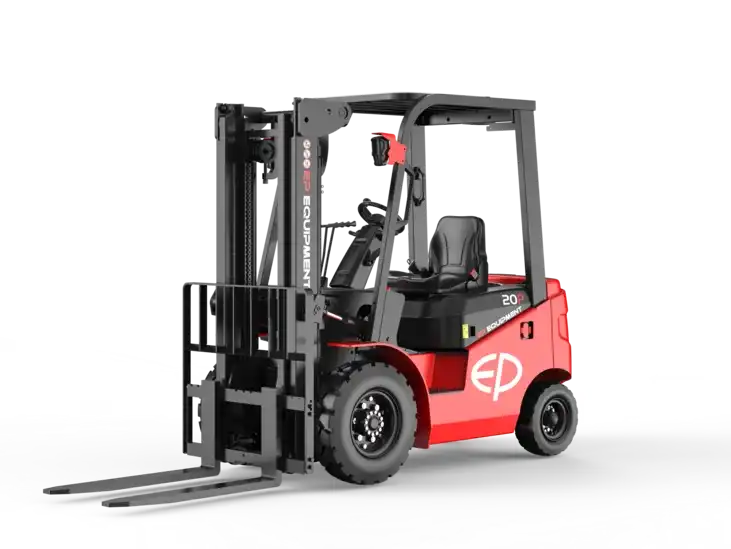

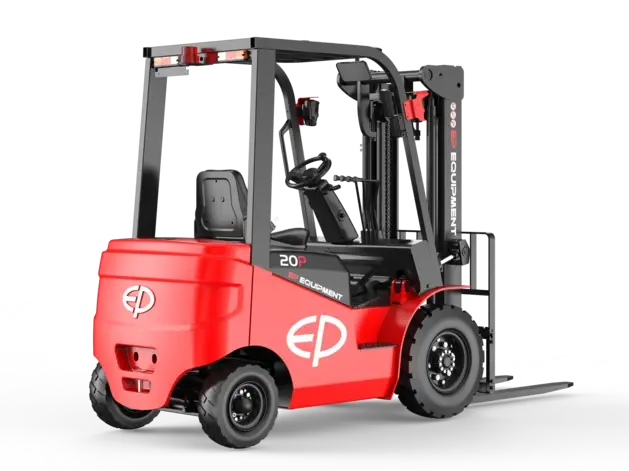

Four-Wheel Electric 2.0T Counterbalance Forklift

The EFL203 is a 4-wheel Li-ion counterbalance forklift featuring a 2000kg load capacity. It perfectly bridges the gap between classic IC forklift design and advanced 80V lithium-ion technology, delivering maximum efficiency for modern material handling.

2T
Load Capacity
6.0m
Max Lift Height
Li-ion
Power Source
5–9h
Shift Runtime
2,000kg
Load Capacity
6,000mm
Max Lift Height
3,000mm
Min Lift Height
Li-ion
Power Source
5–9hrs
Shift Runtime
Customization

Configure Your EFL203

Customise with genuine accessories and options

Estimated Retail Price

$27,XXX.XXPrice subject to final quotes

According to VDI 2198

Full Specifications

Identification
ManufacturerEP Equipment
Drive TypeElectric
Operator TypeSeated
Load Capacity2,000kg
Load Center Distance500mm
Weight
Service Weight (incl. battery)3,780kg
Dimensions
Overall Width1,154mm
Truck Body Length2,356mm
Turning Radius2,110mm
Min. Aisle Width4,005mm
Ground Clearance (Mast)125mm
Ground Clearance (Wheelbase)150mm
Default Fork Dimension40(T) * 122(W) * 1,070(L)mm
Performance
Travel Speed (Laden)14km/h
Travel Speed (Unladen)15km/h
Lifting Speed0.29 / 0.36m/s
Max Gradeability (Laden)15%
Max Gradeability (Unladen)20%
Electrical System
Battery Voltage80V
Why Choose

The EFL203 Advantage

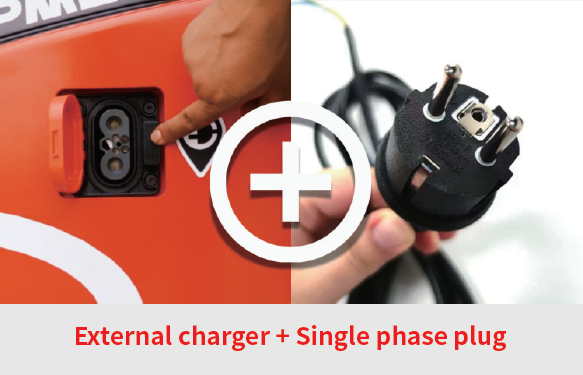

EFL203 four-wheel lithium-ion electric forklift by EP Equipment with an integrated charger with a plug, plus an additional plug for an external charger to support dual charging for continuous operation

Flexible Dual Charging System

Experience ultimate charging flexibility to meet any application need. The EFL203 comes standard with two charging possibilities on the same truck: an integrated charger with a plug, plus an additional plug for an external charger.

lithium forklift by EP Equipment operating in heavy rain, demonstrating all-weather durability with overhead guard protection

All-Weather & Rugged Terrain Ready

Engineered for the outdoors, this truck features a water-resistant design to safely handle goods transportation on rainy days. Combined with large tires and a high ground clearance of 150mm, it easily navigates uneven surfaces and rugged yard environments.

Compact Yet Spacious Ergonomics

Compact Yet Spacious Ergonomics

Inheriting the streamlined counterweight from the EFL 3 series, it offers a more compact size than traditional IC trucks without sacrificing operator comfort. Operators benefit from spacious legroom, an adjustable steering wheel, and a comfortable seat with armrests for fatigue-free shifts.

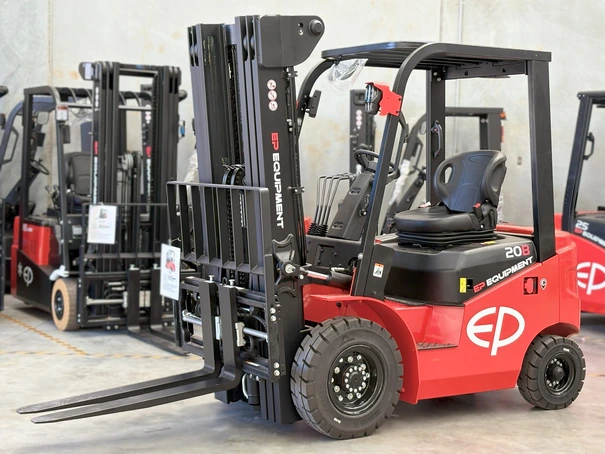

EFL203 four-wheel lithium-ion electric forklift by EP Equipment in stock at warehouse, ready for delivery

Tailored Performance: Standard & Premium Versions

The EFL203 series is available in two distinct versions to satisfy diverse industrial requirements. For high-intensity operations, the Premium version (EFL203P) boasts enhanced capabilities, including a top travel speed of 20km/h and an impressive maximum gradeability of 28%.

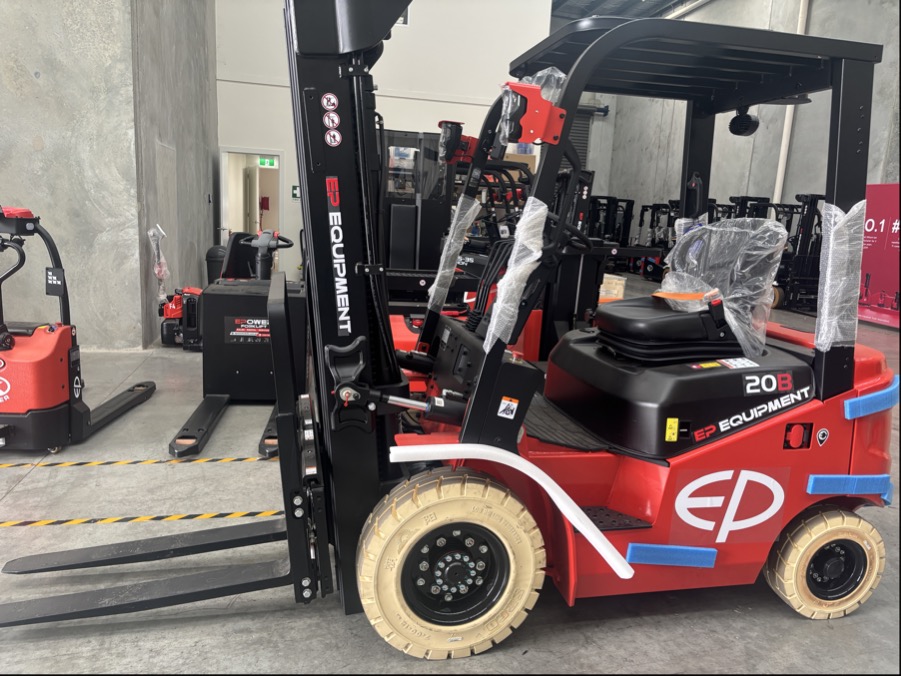

EFL203 four-wheel lithium-ion electric forklift by EP Equipment stored in warehouse with other forklifts

Enhanced Visibility & Smart Display

Safety and accuracy are prioritized with a newly developed mast that optimizes hose layout, paired with a bolted overhead guard for an unobstructed view of your loads. Furthermore, operators are kept fully informed via a large-size LED display, while powerful LED front lights illuminate dark working conditions.

Key Highlights

Key Highlights

10-Year Market-Tested Components

The EFL series inherits its core structural components—including the mast and steer axle—from the globally acclaimed T8 IC forklift series. These heavy-duty parts have undergone over a decade of rigorous testing, ensuring diesel-grade fatigue resistance.

80V Lithium-ion Architecture

Equipped with a high-capacity 80V battery system that eliminates voltage drops, providing sustained, fade-free power equivalent to diesel engines throughout the entire shift.

Zero-Downtime Opportunity Charging

Plug in during coffee breaks or shift changes. The integrated fast-charging system allows the truck to run 24/7 without the need for spare batteries or dedicated charging rooms.

All-Terrain Solid Rubber Tires

Fitted with large front solid tires that absorb shock and provide superior traction on uneven surfaces, gravel, and wet asphalt, outperforming standard indoor electric forklifts.

Spacious Operator Cabin

Leveraging the larger IC chassis footprint, the EFL253 offers an expanded footwell and wider seating area, significantly reducing operator fatigue during long operational hours.

Weather-Resilient Components

Engineered with sealed controllers and water-protected charging ports, ensuring reliable performance whether you are operating under extreme temperatures or outdoor conditions.

Financing

Smart Financing Solutions to Fuel Your Growth

1

Rent-to-Own Solutions

Turn Operational Expenses into Assets

Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.

2

Chattel Mortgage

Immediate Ownership & Tailored Repayments

Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.

3

Fully-Maintained Operating Lease

Predictable Costs, Zero Maintenance Stress

Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.

FAQ

Frequently Asked Questions

While both offer a 2000kg capacity, the EFL203P is the Premium version tailored for demanding, high-intensity operations. It features an upgraded 15kW drive motor , delivering a faster travel speed of up to 20km/h and a stronger maximum gradeability of 28%, compared to the standard model's 15km/h and 20% gradeability.

Yes, the truck features a dedicated water-resistant design to cope with goods transportation on rainy days. With its high ground clearance of 150mm and large pneumatic tires, it ensures smooth and uninterrupted operation even on uneven outdoor surfaces.

The EFL203 provides exceptional flexibility by including two charging possibilities on the same truck: an integrated charger and a plug for an external charger. For continuous multi-shift operations, you can also opt for the high-capacity 80V-460Ah battery option to achieve extremely long autonomy.

EP Equipment utilizes Lithium Iron Phosphate (LFP) cell technology, which is engineered to deliver upwards of 4,000 charge cycles. Paired with our proprietary Battery Management System (BMS) that actively prevents overcharging and deep discharging, the battery typically lasts the entire operational lifecycle of the forklift without power degradation.

Lead-acid batteries require a strict 8-hour charge followed by an 8-hour cooling period and suffer from 'memory effect'. In contrast, EP's lithium-ion batteries support opportunity charging—allowing operators to plug in the equipment during 15-minute coffee breaks or shift changes. This eliminates the need for spare batteries and dedicated charging rooms, enabling seamless 24/7 operation.

Lithium-ion battery removes the daily and weekly maintenance burdens associated with traditional power sources. There is zero battery watering, no acid equalization, no engine oil changes, and no filter replacements. Maintenance is strictly reduced to routine mechanical inspections (such as brakes, tires, and mast lubrication).

Absolutely. EP strictly utilizes LFP (Lithium Iron Phosphate) chemistry, which is fundamentally more thermally stable than NMC chemistries used in consumer electronics. Our battery packs emit zero harmful gases during operation or charging, making them perfectly safe for enclosed, unventilated indoor spaces.

Many EP models are equipped with advanced Telematics. This system provides fleet managers with real-time data on truck location, operational hours, battery health diagnostics, and impact reports. It also supports RFID card access, ensuring only authorized personnel can operate the equipment.
