EP EFL253
Four-Wheel Electric 2.5T Counterbalance Forklift
The EFL253 is a 4-wheel lithium counterbalance forklift manufactured by EP Equipment designed for industrial and warehouse applications. It is a strong alternative to diesel forklifts, offering low maintenance, high efficiency, and improved operator comfort.
Configure Your EFL253
Customise with genuine accessories and options
Estimated Retail Price
$31,XXX.XXPrice subject to final quotes
Full Specifications
| Identification | |
|---|---|
| Manufacturer | EP Equipment |
| Drive Type | Electric |
| Operator Type | Seated |
| Load Capacity | 2,500kg |
| Load Center Distance | 500mm |
| Weight | |
| Service Weight (incl. battery) | 3,780kg |
| Dimensions | |
| Overall Width | 1,154mm |
| Truck Body Length | 2,530mm |
| Turning Radius | 2,305mm |
| Min. Aisle Width | 4,200mm |
| Ground Clearance (Mast) | 125mm |
| Ground Clearance (Wheelbase) | 170mm |
| Default Fork Dimension | 40(T) * 122(W) * 1,070(L)mm |
| Performance | |
| Travel Speed (Laden) | 11km/h |
| Travel Speed (Unladen) | 12km/h |
| Lifting Speed | 0.29 / 0.36m/s |
| Max Gradeability (Laden) | 15% |
| Max Gradeability (Unladen) | 15% |
| Electrical System | |
| Battery Voltage | 80V |
The EFL253 Advantage

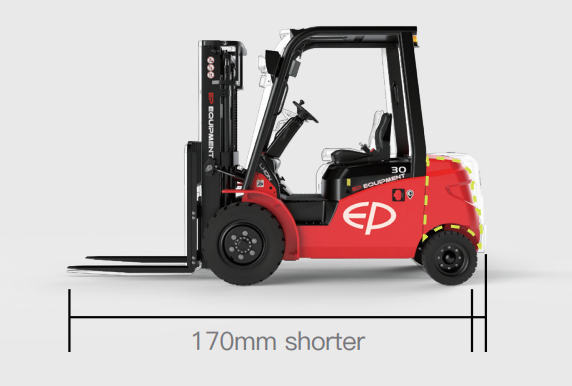

Streamlined IC-Class Chassis
Built on the robust legacy of the EP T8 internal combustion truck, the new EFL series features a redesigned counterweight that makes the truck 170mm shorter. This exceptional compactness allows for tighter turning radiuses without sacrificing the heavy-duty stability required for yard operations.

High-Visibility Tempered Glass Roof
Safety meets all-weather performance. The bolted overhead guard comes standard with a closed roof made of high-strength tempered glass. This innovative design offers operators an unparalleled, clear upward view for precise high-rack stacking.

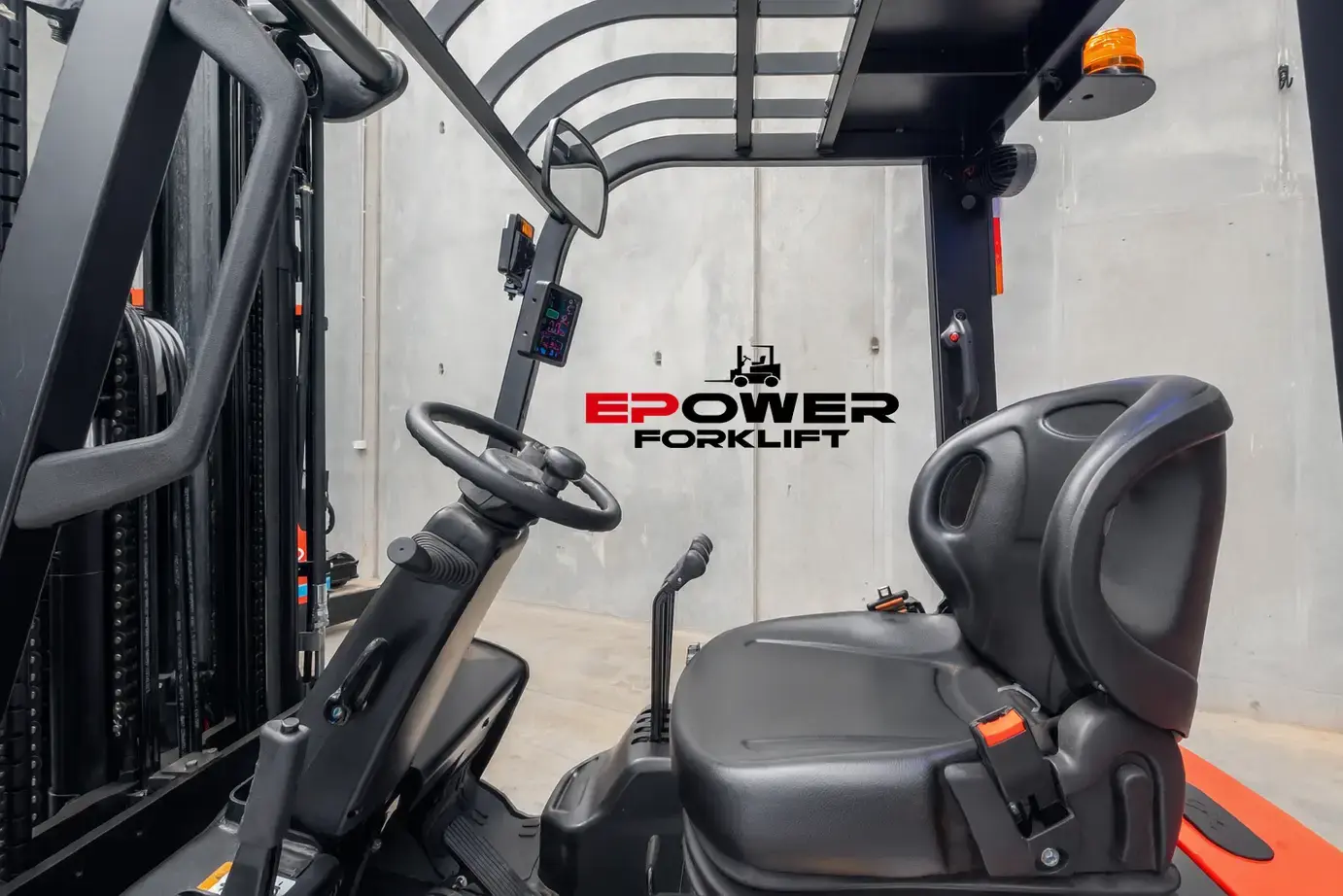

Intelligent Operator Workspace
The upgraded cabin boasts a wider footwell, a simplified pedal layout, and a premium suspension seat designed to absorb terrain impact. Coupled with a high-resolution LED display providing real-time data and highly responsive ergonomic levers, it ensures fatigue-free operation during the longest shifts.
The Evolution of the EFL Series
The new generation of the EFL Series perfectly bridges the gap between rugged diesel performance and clean lithium technology. By integrating an 80V high-capacity Li-ion battery into a heavy-duty chassis, it handles loads with consistently high performance. Supported by large front solid rubber tires and exceptional ground clearance, it navigates uneven gravel, wet asphalt, and warehouse aisles with equal dominance.
Smart Fleet Management & Safety
Security and control are at the forefront of the new EFL series. It can be equipped with an Operator Presence System (OPS), advanced Telematics for real-time fleet diagnostics, and an RFID Card system to restrict access to authorized personnel only. Opportunity charging allows the truck to be plugged in during coffee breaks, eliminating the need for battery swaps and dedicated charging rooms.
Key Highlights
10-Year Market-Tested Components
The EFL series inherits its core structural components—including the mast and steer axle—from the globally acclaimed T8 IC forklift series. These heavy-duty parts have undergone over a decade of rigorous testing, ensuring diesel-grade fatigue resistance.
80V Lithium-ion Architecture
Equipped with a high-capacity 80V battery system that eliminates voltage drops, providing sustained, fade-free power equivalent to diesel engines throughout the entire shift.
Zero-Downtime Opportunity Charging
Plug in during coffee breaks or shift changes. The integrated fast-charging system allows the truck to run 24/7 without the need for spare batteries or dedicated charging rooms.
All-Terrain Solid Rubber Tires
Fitted with large front solid tires that absorb shock and provide superior traction on uneven surfaces, gravel, and wet asphalt, outperforming standard indoor electric forklifts.
Spacious Operator Cabin
Leveraging the larger IC chassis footprint, the EFL253 offers an expanded footwell and wider seating area, significantly reducing operator fatigue during long operational hours.

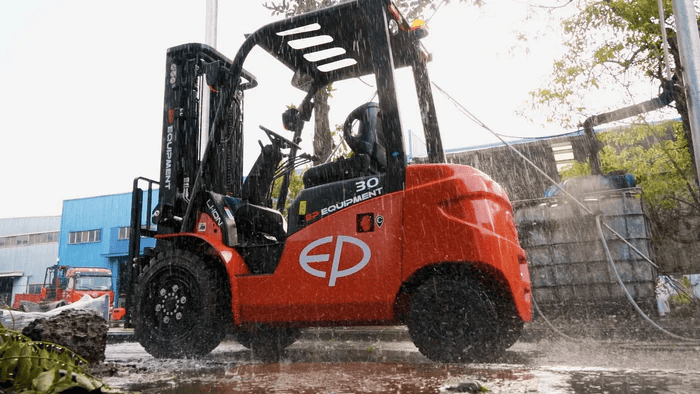

Weather-Resilient Components
Engineered with sealed controllers and water-protected charging ports, ensuring reliable performance whether you are operating under extreme temperatures or outdoor conditions.
Smart Financing Solutions to Fuel Your Growth
Rent-to-Own Solutions
Turn Operational Expenses into Assets
Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.
Chattel Mortgage
Immediate Ownership & Tailored Repayments
Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.
Fully-Maintained Operating Lease
Predictable Costs, Zero Maintenance Stress
Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.
You May Also Like...
Frequently Asked Questions
Yes. Built on an Internal Combustion (IC) style chassis, these trucks feature large-diameter solid tires and exceptional ground clearance. Additionally, they are equipped with a rain-proof charging port and offer optional fully closed cabins with heaters, making them highly capable in unpredictable outdoor environments.
While it utilizes a rugged IC-style chassis, the EFL series features a redesigned, streamlined counterweight that is 170mm shorter than traditional models. This provides a significantly tighter turning radius, allowing it to maneuver efficiently in confined indoor warehouse aisles without sacrificing heavy-duty stability outdoors.
The standard EFL model showcased here is designed as the 'all-rounder' for 80% of warehouse and yard applications, balancing robust 80V power with optimized energy efficiency. EP Equipment also offers the specialized 'S' and 'P' (Performance) versions for extreme, continuous operations. These upgraded variants feature highly powerful drive motors (up to 17kW), faster travel speeds (up to 20 km/h), and enhanced gradeability. Please contact our team or check our dedicated S/P product pages for these heavy-duty configurations.
EP Equipment utilizes Lithium Iron Phosphate (LFP) cell technology, which is engineered to deliver upwards of 4,000 charge cycles. Paired with our proprietary Battery Management System (BMS) that actively prevents overcharging and deep discharging, the battery typically lasts the entire operational lifecycle of the forklift without power degradation.
Lead-acid batteries require a strict 8-hour charge followed by an 8-hour cooling period and suffer from 'memory effect'. In contrast, EP's lithium-ion batteries support opportunity charging—allowing operators to plug in the equipment during 15-minute coffee breaks or shift changes. This eliminates the need for spare batteries and dedicated charging rooms, enabling seamless 24/7 operation.
Lithium-ion battery removes the daily and weekly maintenance burdens associated with traditional power sources. There is zero battery watering, no acid equalization, no engine oil changes, and no filter replacements. Maintenance is strictly reduced to routine mechanical inspections (such as brakes, tires, and mast lubrication).
Absolutely. EP strictly utilizes LFP (Lithium Iron Phosphate) chemistry, which is fundamentally more thermally stable than NMC chemistries used in consumer electronics. Our battery packs emit zero harmful gases during operation or charging, making them perfectly safe for enclosed, unventilated indoor spaces.
Many EP models are equipped with advanced Telematics. This system provides fleet managers with real-time data on truck location, operational hours, battery health diagnostics, and impact reports. It also supports RFID card access, ensuring only authorized personnel can operate the equipment.
