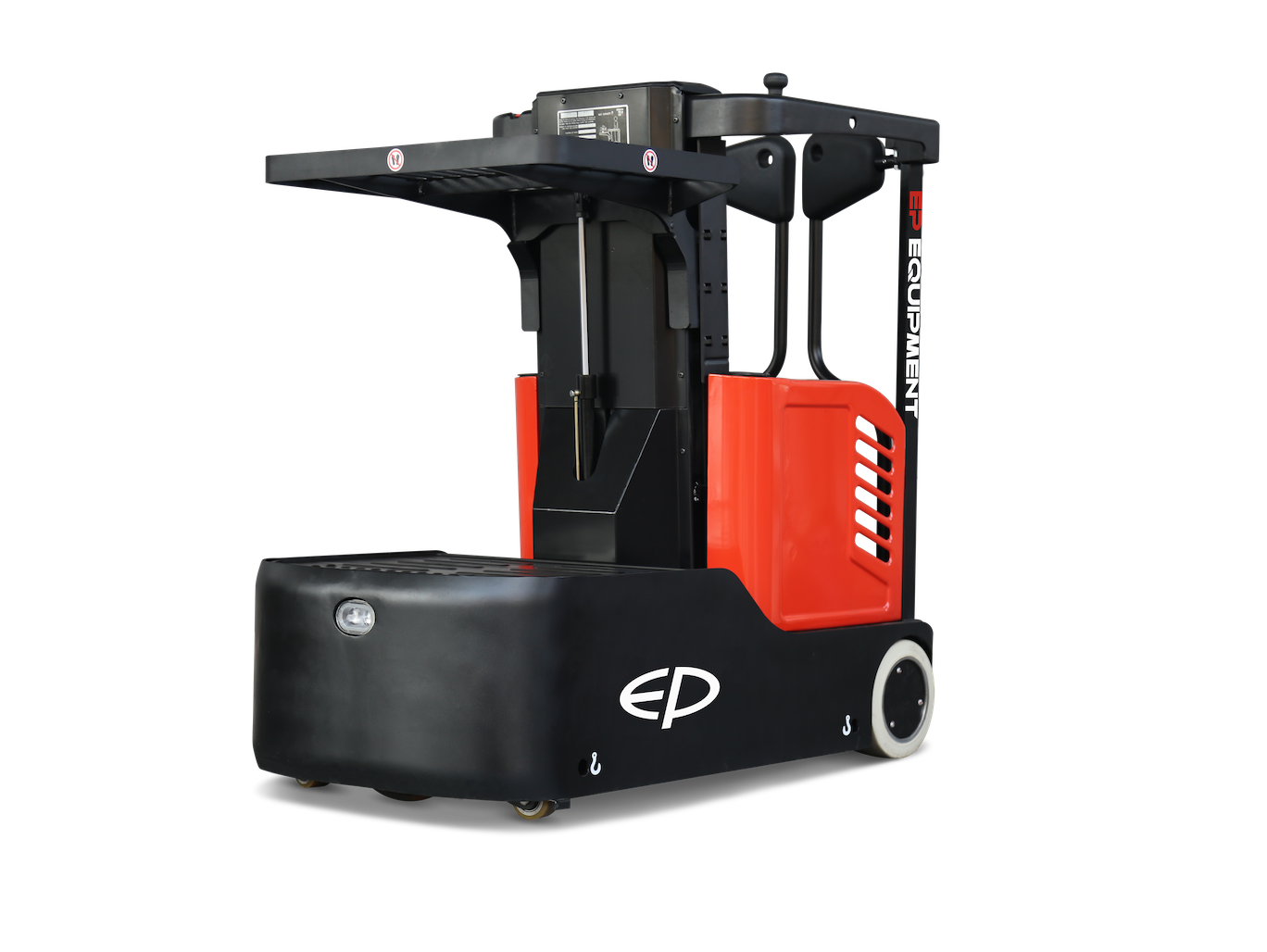

EP JX0
Small Volume Electric Order Picker

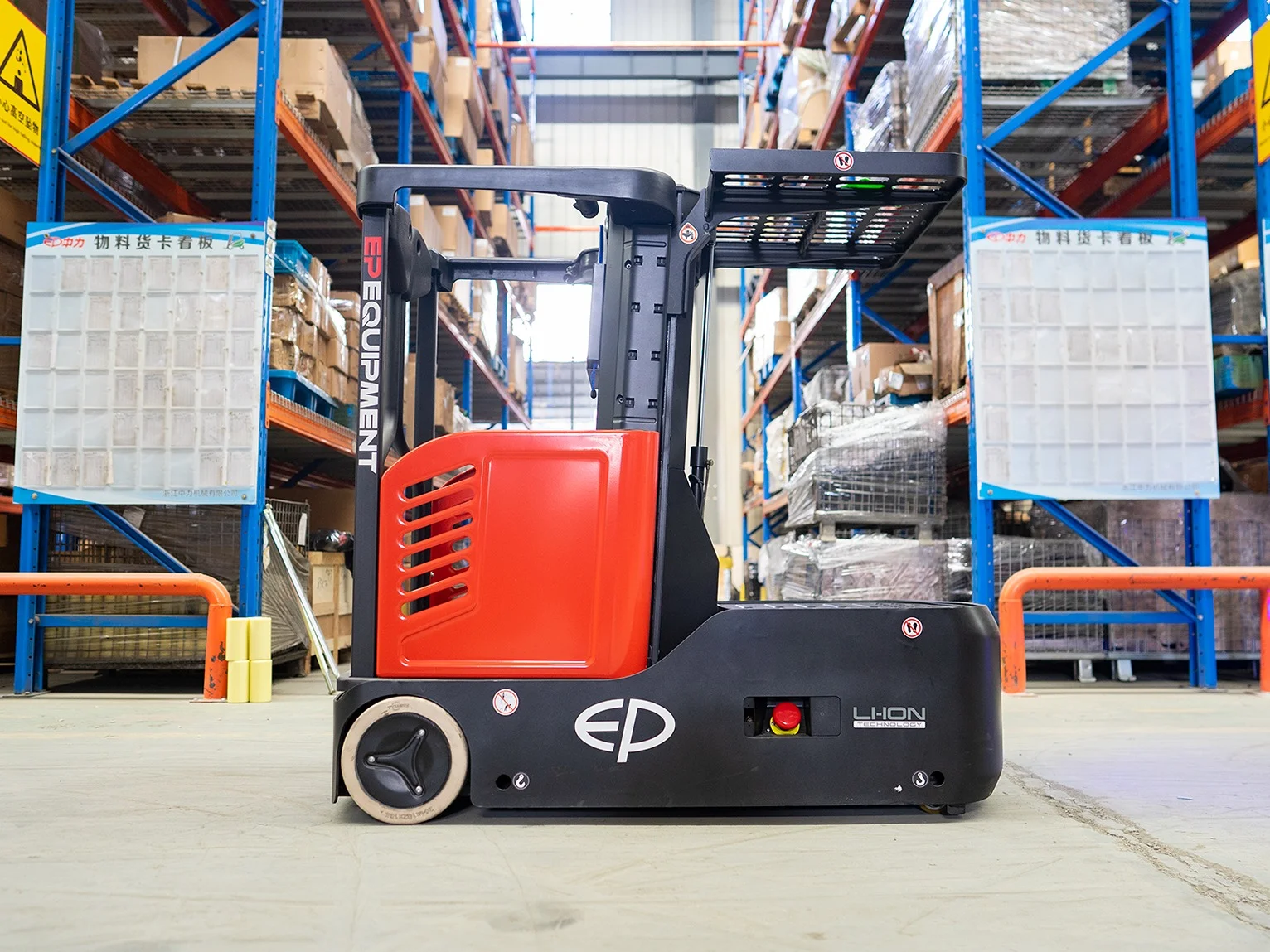

The EP JX0 is a highly compact vertical order picker purpose-built for e-commerce, retail, and general warehouse environments. Designed for frequent low- to mid-level picking, it features a 3000mm elevated stand height and a versatile load capacity structure—including a 136kg standing platform, a 90kg load tray, and a 110kg extra load deck. With an ultra-narrow 750mm chassis and a 1260mm turning radius, the JX0 easily navigates tight aisles, while its automatic speed adjustment and lithium-ion options ensure maximum safety and continuous productivity.
Configure Your JX0
Customise with genuine accessories and options
Estimated Retail Price
$18,XXX.XXPrice subject to final quotes
Full Specifications
| Identification | |
|---|---|
| Manufacturer | EP Equipment |
| Drive Type | Electric |
| Operator Type | Order Picker |
| Load Capacity | 90 / 110 / 136kg |
| Weight | |
| Service Weight (incl. battery) | 800kg |
| Dimensions | |
| Overall Width | 750mm |
| Turning Radius | 1,260mm |
| Ground Clearance (Wheelbase) | 35mm |
| Performance | |
| Travel Speed (Laden) | 6km/h |
| Travel Speed (Unladen) | 6.5km/h |
| Lifting Speed | 0.22 / 0.27m/s |
| Max Gradeability (Laden) | 5% |
| Max Gradeability (Unladen) | 8% |
| Electrical System | |
| Battery Voltage | 24V |
| Battery Capacity | 135Ah |
The JX0 Advantage

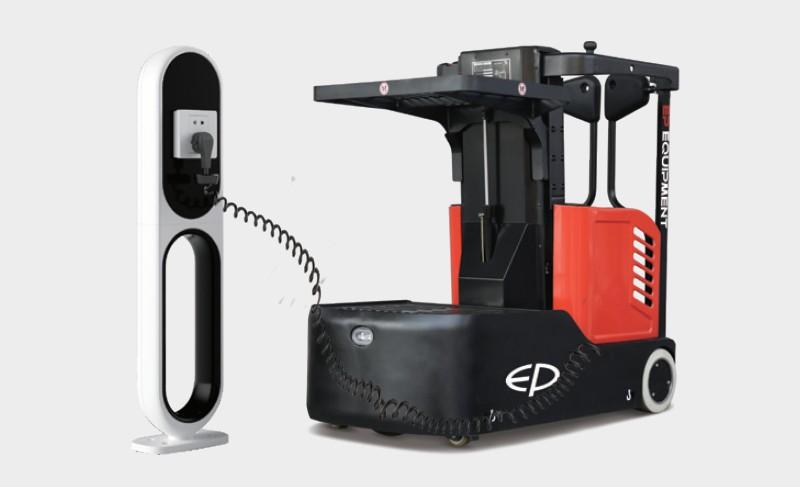

Standard Li-ion Power for Maximum Uptime
Eliminate battery maintenance and downtime. The JX0 comes standard with a 24V/135Ah maintenance-free Lithium-ion battery and a 24V-30A integrated charger. Operators can easily perform fast opportunity charging from standard wall outlets during short breaks, ensuring 24/7 operational availability.

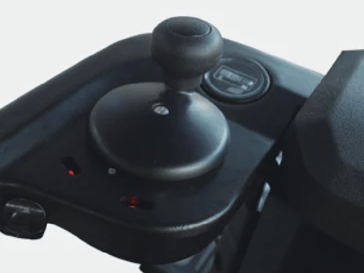

Intuitive Mini-Steering & Dual Controls
Redefining precision in narrow aisles. The JX0 features an intuitive left-hand mini steering wheel and right-hand fingertip speed controls. It supports simultaneous driving and lifting, significantly reducing travel and picking cycles in high-throughput environments.
Smart Safety & Speed Control
Safety is built into its core. The JX0 is equipped with an intelligent automatic travel speed adjustment system that proactively reduces the vehicle's driving speed based on the platform's lifting height, ensuring complete operator confidence and stability during mid-level picking tasks up to 3 meters.

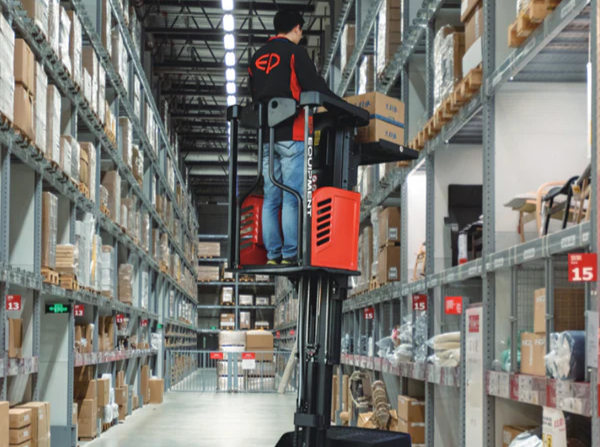

The Safe Alternative for Productive Picking
The EP JX0 is a specialized electric task support vehicle engineered to eliminate workplace hazards, serving as the definitive alternative to dangerous manual rolling ladders. With a reinforced mast and a total load capacity spread across three levels—a 136kg operator platform, a 90kg load tray, and a 110kg extra load deck—it empowers a single operator to safely retrieve and sort multiple items at a elevated stand height of 3000mm.
Extreme Agility for Confined Spaces
Engineered for tight retail supermarket floors and congested parts warehouses, the JX0 features an ultra-narrow 750mm chassis and a tight 1260mm turning radius. Its quiet electric drive and zero emissions make it the perfect task support vehicle for indoor fulfillment centers where conventional forklifts simply cannot operate.
Application
The JX0 is the perfect solution for maximizing productivity across various sectors:
• Retail & Supermarket Replenishment: Maneuver through busy aisles during business hours for safe, pedestrian-friendly shelf restocking.
• E-commerce Fulfillment Centers: Optimize multi-SKU picking with high-frequency, precision handling for small items.
• Parts & Hardware Warehousing: Navigate narrow aisles storing high-value components with greater stability than conventional forklifts.
• Healthcare & Pharmaceutical Logistics: Its zero-emission and quiet electric drive make it ideal for sensitive indoor sorting environments.
• Facility Maintenance & Inspection: Doubles as a versatile work platform for overhead lighting repairs and routine facility checks.
Key Highlights
Standard Li-ion Power
Comes standard with a 24V/135Ah Li-ion battery and an integrated charger[cite: 474]. It supports opportunity fast charging with zero maintenance, significantly boosting multi-shift productivity[cite: 475].
Versatile Load Capacity
Features a 3000mm elevated stand height for mid-level picking[cite: 478]. The flexible capacity structure includes a 136kg standing platform, a 90kg load tray, and a 110kg extra load deck for efficient sorting[cite: 222].
Ultra-Compact Agility
Engineered with a narrow 750mm chassis and a remarkably tight 1260mm turning radius[cite: 456]. This allows operators to easily navigate crowded storage areas and the tightest retail aisles[cite: 456].
Smart Safety & Speed Control
Equipped with an automatic travel speed adjustment system that proactively reduces driving speed based on the lifting height[cite: 457]. This ensures complete stability and operator confidence during elevated picking tasks[cite: 457].
Smart Financing Solutions to Fuel Your Growth
Rent-to-Own Solutions
Turn Operational Expenses into Assets
Preserve your working capital by turning standard rental payments into a pathway to full ownership. This flexible structure allows your business to utilize top-tier equipment immediately while steadily building equity over time, without the pressure of a large upfront investment.
Chattel Mortgage
Immediate Ownership & Tailored Repayments
Take immediate control of your equipment from day one. Designed for businesses seeking to maximize their tax benefits, this traditional equipment loan lets you customize repayment schedules to align perfectly with your company's cash flow cycles while boosting site productivity.
Fully-Maintained Operating Lease
Predictable Costs, Zero Maintenance Stress
Keep your fleet modern and your budget predictable. This all-inclusive leasing option wraps the equipment, routine servicing, and unexpected repairs into one fixed monthly payment. We handle the maintenance, so your team can focus 100% on core operations and maximizing uptime.
Frequently Asked Questions
The JX0 features a maximum elevated stand height of 3000mm. This allows an average operator to safely and comfortably reach a picking height of approximately 4.5 meters, making it the perfect tool for mid-level racking in retail and e-commerce environments.
No. Our JX0 comes standard with a high-performance Lithium-ion battery. It is completely maintenance-free with zero emissions. Thanks to the integrated charger, you can perform fast opportunity charging at any standard wall outlet, eliminating the need for a dedicated charging room.
The JX0 is designed for versatile sorting. It has a total load capacity split into three dedicated areas: 136kg for the operator platform, 90kg for the front load tray, and an additional 110kg for the lower storage deck. This allows you to pick multiple items and sort them efficiently in one trip.
Yes, absolutely. The JX0 is one of the most compact task support vehicles on the market, with an overall width of just 750mm and a tight turning radius of 1260mm. It is engineered to maneuver effortlessly around pedestrians and through congested retail floors without disrupting customers.
Yes. Order pickers elevate the operator alongside the load. Under Australian SafeWork regulations, operating this type of equipment requires an LO (Order Picking Forklift Truck) High-Risk Work License. Ensuring your staff holds an LO license guarantees compliance and workplace safety.
Order pickers are specifically designed for piece-picking (getting individual boxes or items) rather than moving entire pallets. They completely eliminate the severe fall risks and physical fatigue associated with manual rolling ladders. Compared to standard forklifts, they lift the operator directly to the racking level, allowing for fast, highly accurate, and ergonomic direct picking.
Absolutely. Safety is the core of our order pickers. They are equipped with intelligent proportional control systems that automatically reduce the travel speed as the platform goes higher. Combined with interlocking safety gates and dual-hand presence sensors, operators are fully protected while moving between picking locations at height.
By allowing operators to drive and lift simultaneously, order pickers drastically reduce travel and picking cycle times. Workers no longer waste time climbing up and down ladders or repositioning equipment. With lithium-ion battery options supporting fast opportunity charging, these machines can easily sustain multi-shift operations with zero downtime.
